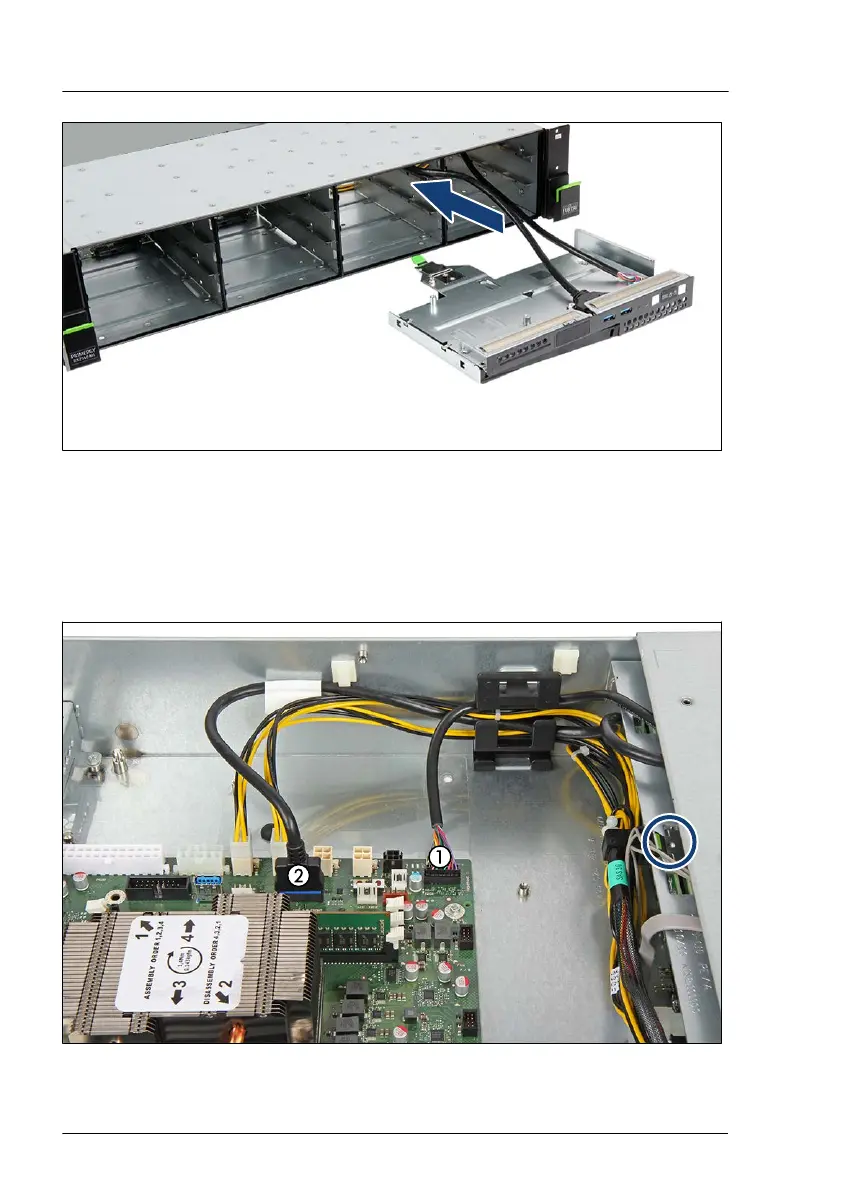

Figure 235: Figure 221: Installing the front panel module
▶
Run the cables through the opening.
▶
Insert the front panel module into the chassis.
▶
Insert the ID card, see Figure 283.
Figure 236: Connecting the front panel cables
Front panel
