For information on how to access the BIOS and modify settings, see the
corresponding BIOS Setup Utility reference manual.
Removing the TPM
▶
Remove the system board, see "Removing the system board" on page 426
.
▶
Lay the system board on a soft, antistatic surface with its component side
facing down.

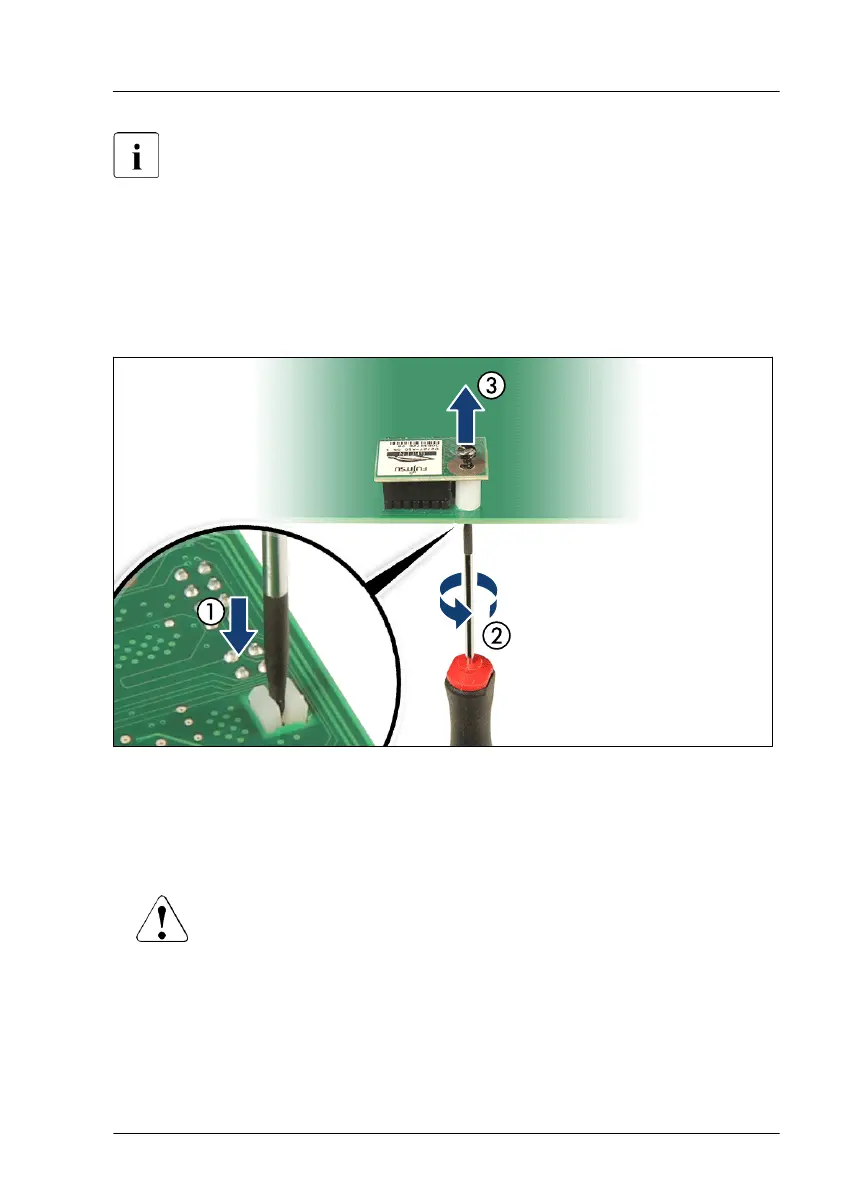

Figure 260: Removing the TPM screw
▶
Locate the slotted lower end of the TPM screw (1).
▶
Carefully loosen the TPM screw using a thin slotted screw driver (e.g.
watchmaker's screw driver) or the dedicated TPM screw driver (Japan) (2).
CAUTION
▶
Ensure to turn the screw clockwise in order to remove it.
▶
Slowly and carefully increase the pressure on the screw until it
begins to turn. The effort when loosing the screw should be as
low as possible.
Otherwise the thin metal bar may break, rendering it impossible
to loosen the screw
.
System board and components
RX2520 M5 Upgrade and Maintenance Manual 397
