102 Upgrade and Maintenance Manual
TX1310 M1
System fans
8.2 Replacing the system fan 2
8.2.1 Preliminary steps
Ê "Shutting down the server" on page 40
Ê "Disconnecting the server from the mains" on page 41
Ê "Getting access to the component" on page 42
Ê "Removing the HDD cage" on page 56
8.2.2 Removing the defective system fan 2

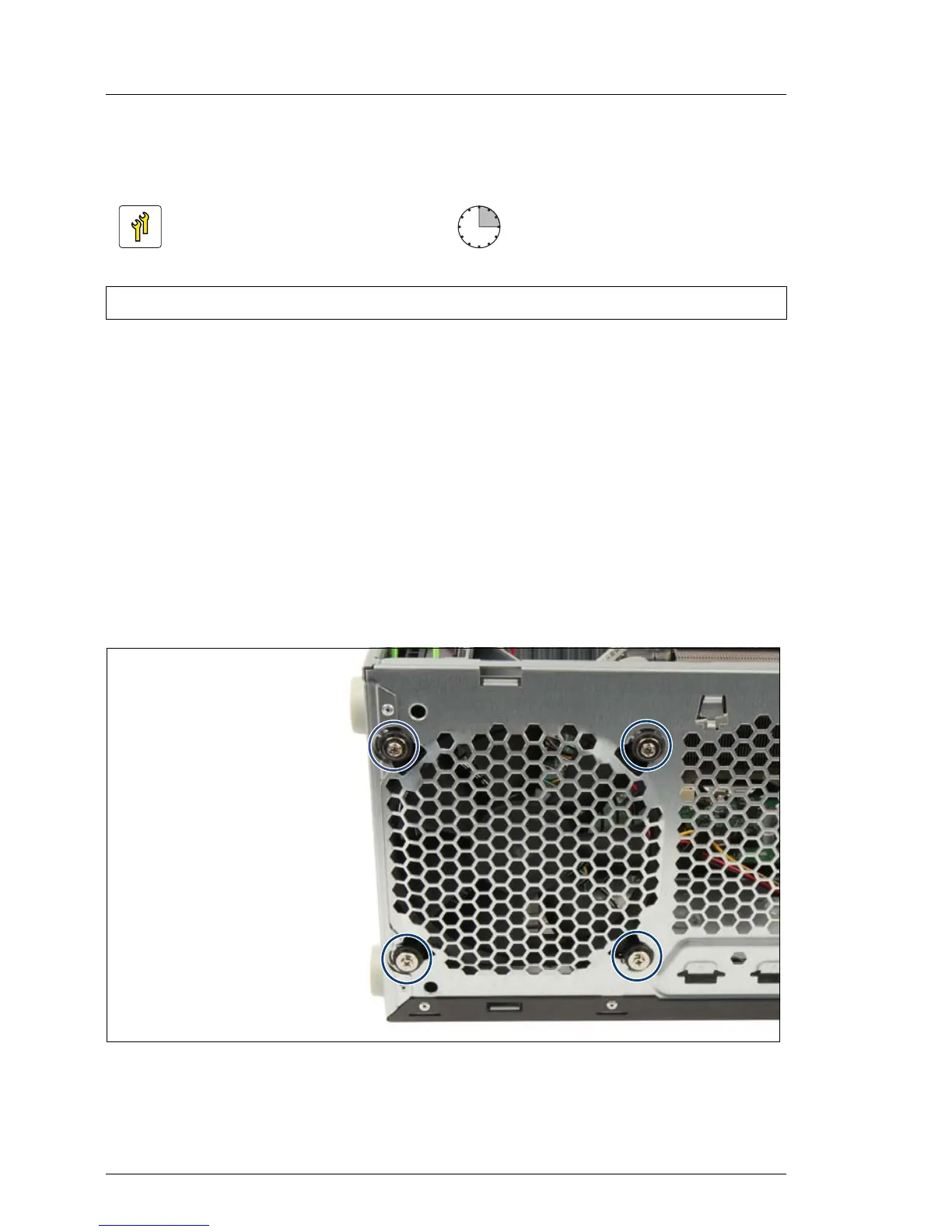

Figure 48: Removing the fan screws
Ê Remove the four screws (see circles).
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
