138 Upgrade and Maintenance Manual
TX1310 M1
Main memory
10.3 Removing memory modules
10.3.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 63
Ê "Shutting down the server" on page 40
Ê "Disconnecting the server from the mains" on page 41
Ê "Removing the side cover" on page 42
10.3.2 Removing a memory module
Ê Identify the desired memory slot according to the mounting order described
in section "Memory sequence" on page 134.
V CAUTION!
Ensure to maintain an operational configuration when removing
memory modules. For additional information, please refer to section
"Operation modes" on page 135.

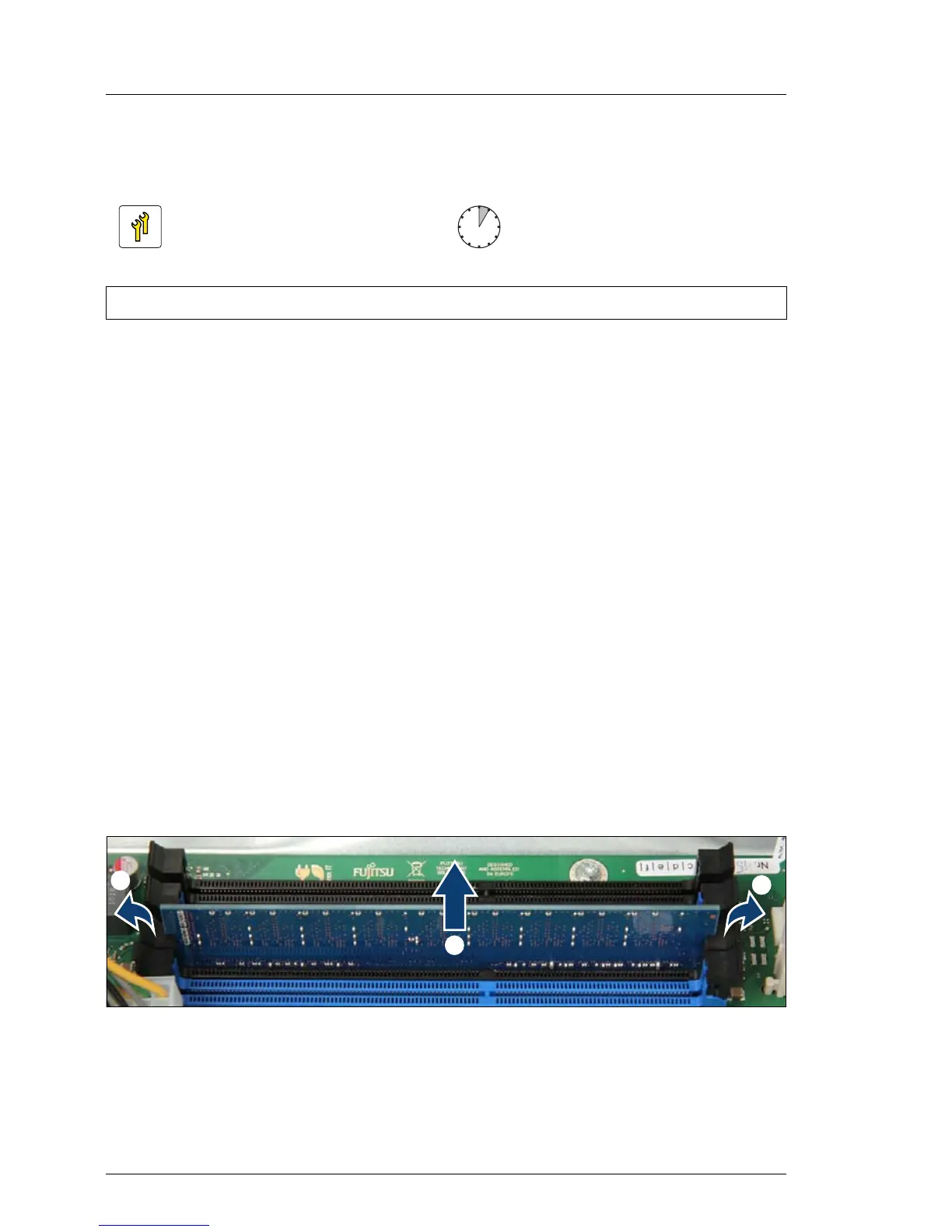

Figure 84: Removing memory modules
Ê Eject the desired memory module by pressing out the securing clips at each
end of the memory module connector (1).
Ê Remove the ejected memory module (2).
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: tool-less
/
/
