230 Upgrade and Maintenance Manual
TX1310 M1
Appendix
16.3 Onboard settings

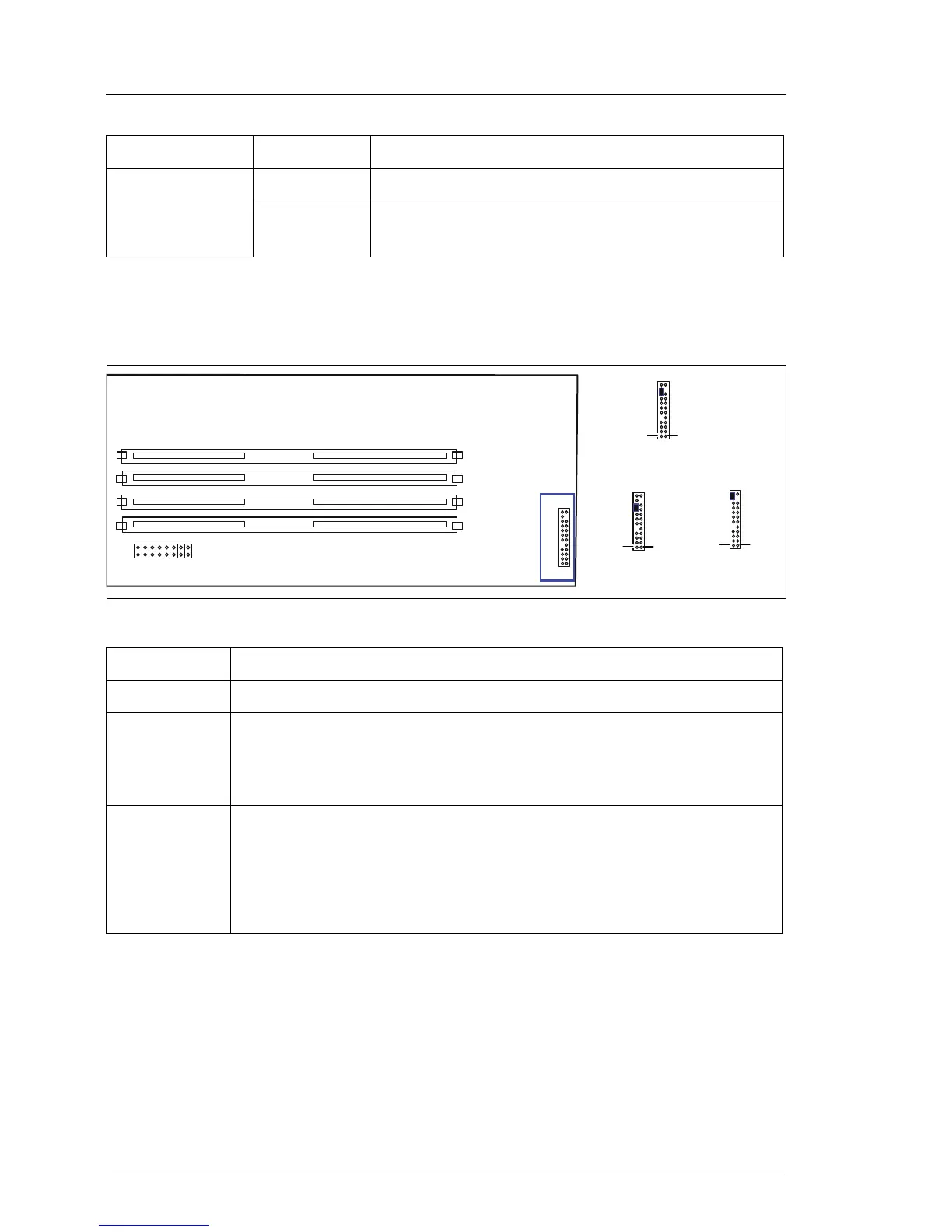

Figure 168: Jumper
When the CMOS battery is removed from a system board, the password set by
customers is kept and also other CMOS settings are restored except date/time.
Power-on
indicator
green on server is switched on and running
off
server is switched off, but mains voltage is
present (standby mode)
Setting Description
Default Password skip disabled and recovery BIOS disabled.
PWD Skip Password skip enabled.
The password is deleted and the default BIOS settings are
applied after “PWD Skip” jumper was set once.
RCVR Recovery BIOS enabled.
Use this function only if the system BIOS is destroyed.
After flashing a new Recovery BIOS from a memory stick the
password and all configuration settings are set to default.
Indicator Status Description
POWER1
DIMM2A
DIMM1A
DIMM2B
DIMM1B
Front panel
Default
PWD Skip
RCVR
Pin 1
Pin 1
Pin 1
Pin 2
Pin 2
Pin 2
