9.3.1.3 Installing an expansion card
Ê Remove the expansion card from its protective packaging.
I For further instructions regarding controller settings, please refer to
the accompanying documentation.
Ê If applicable, attach the required slot bracket to the expansion card as
described in section "Installing a slot bracket" on page 118.

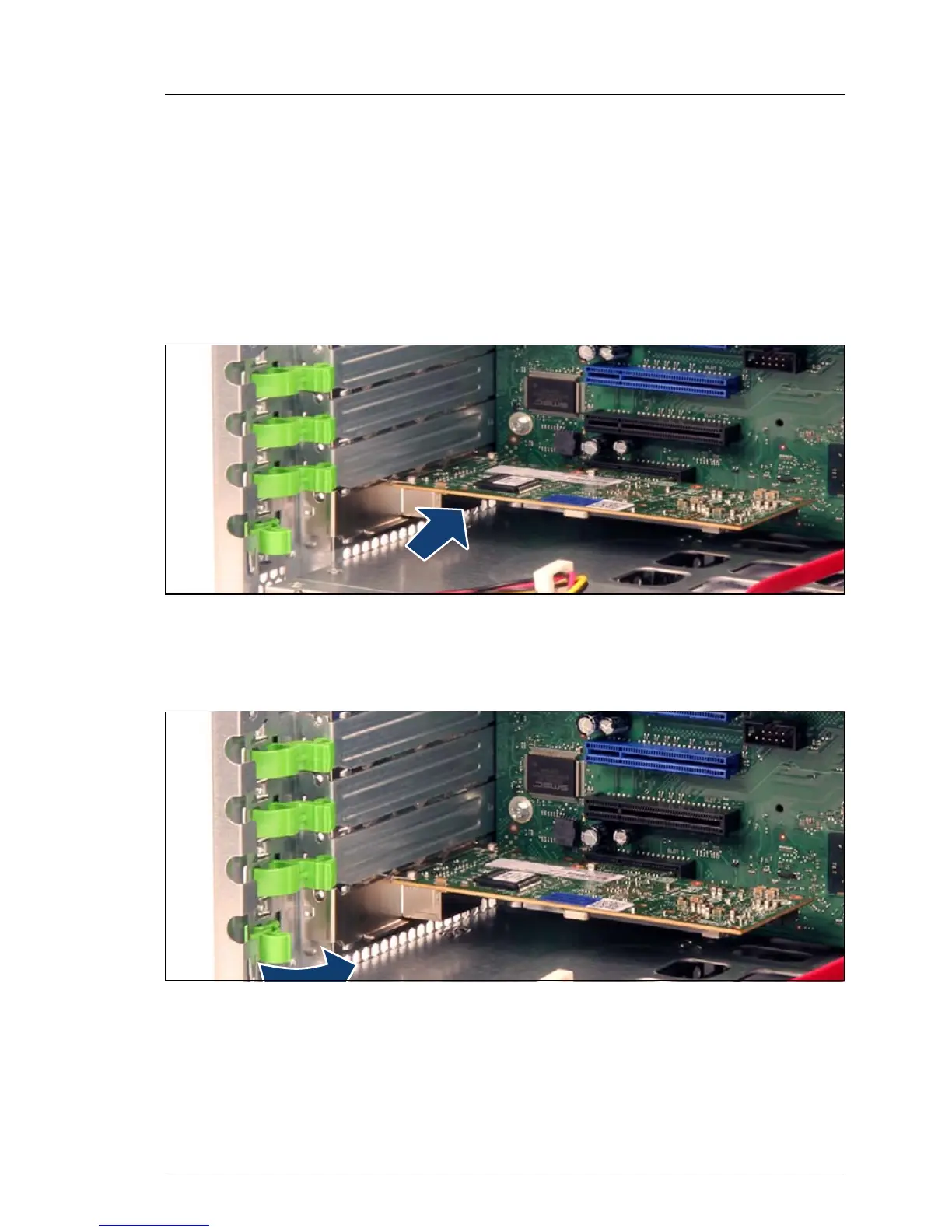

Figure 74: Installing the expansion card (A)
Ê Carefully insert the expansion card into the desired PCI slot and press down
firmly until it is fully seated in the slot.
Figure 75: Installing the expansion card (B)
Ê Close the slot bracket clamp.
Ê If applicable, connect internal cables to the expansion card (see section
"Cabling plans" on page 218).
