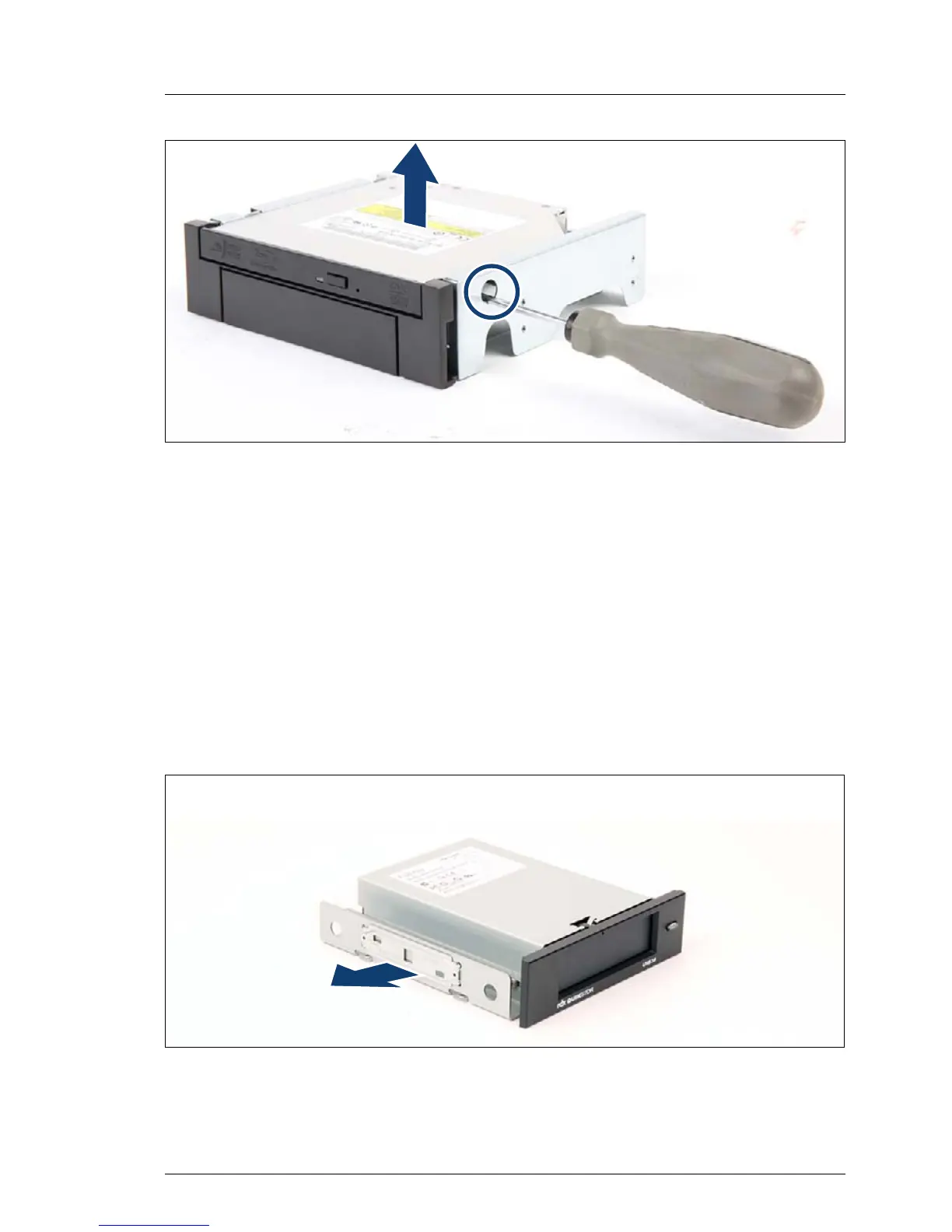

Figure 130: Removing the slimline ODD from the slide-in unit (B)
Ê Remove the M2 x 2.5 mm screw from the right side of the slide-in unit.
Ê Remove the slimline ODD drive from the slide-in unit.
Ê Install the new slimline ODD as described in section "Installing a slimline
optical disk drive (ODD)" on page 167.
12.4.4 Replacing a backup drive
Ê Remove the defective backup drive as described in section "Removing a
backup drive" on page 175.
Figure 131: Removing the fixation plate
Ê Remove the fixation plate from the left side of the backup drive.
