TX1310 M1
Upgrade and Maintenance Manual 169
Accessible drives
12.2.4.3 Installing the slide-in unit

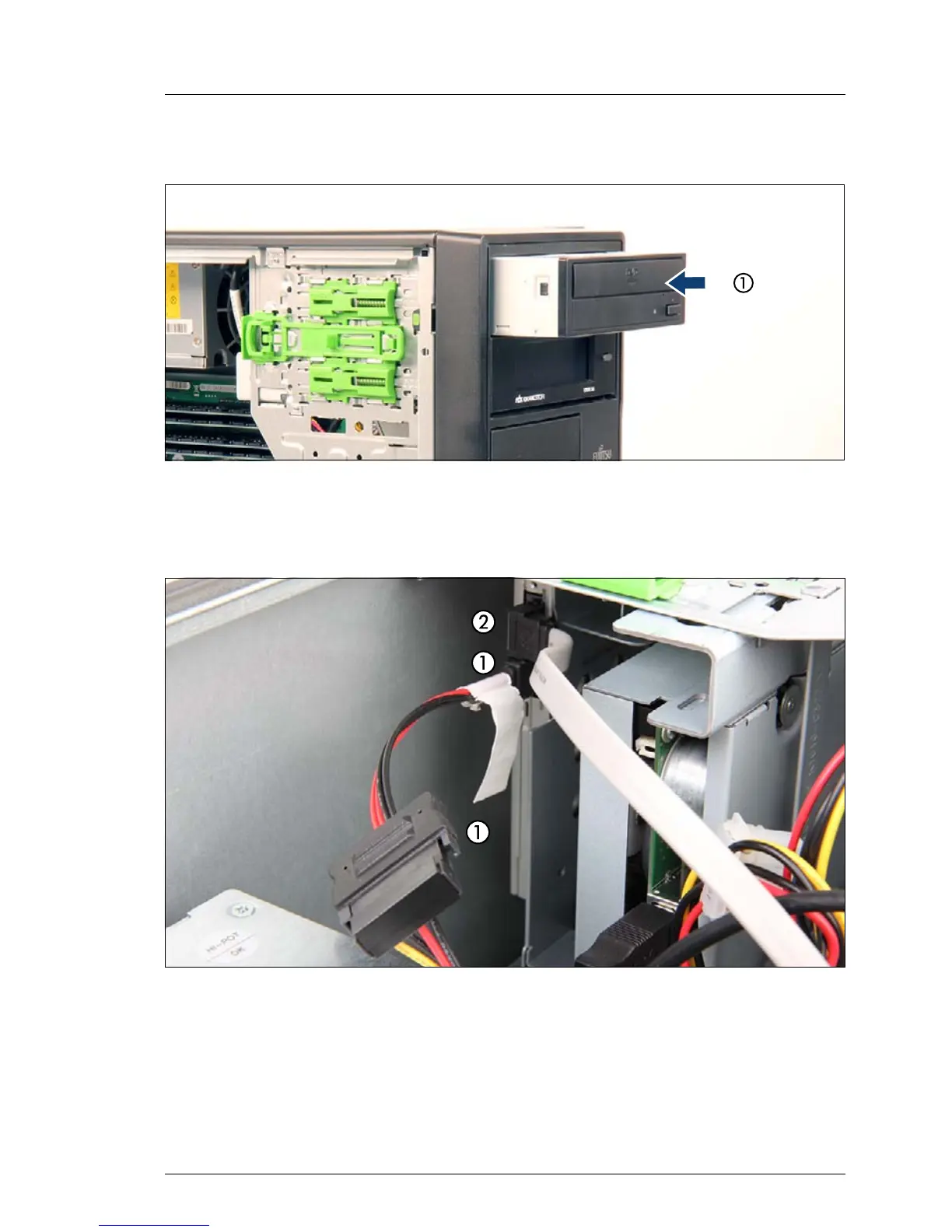

Figure 115: Installing the slide-in unit
Ê Insert the slide-in unit into its installation bay and carefully push in until it
locks in place.
Figure 116: Connecting cables to the slimline optical disk drive
Ê Connect cables to the optical disk drive.
1 Power adapter cable to the power cable connector P8 and the
slimline drive
2 SATA cable
