176 Upgrade and Maintenance Manual
TX1310 M1
Accessible drives
12.3.5 Installing the dummy drive
V CAUTION!
Always replace the dummy drive into the unused drive bays to comply
with applicable EMC regulations and satisfy cooling requirements.

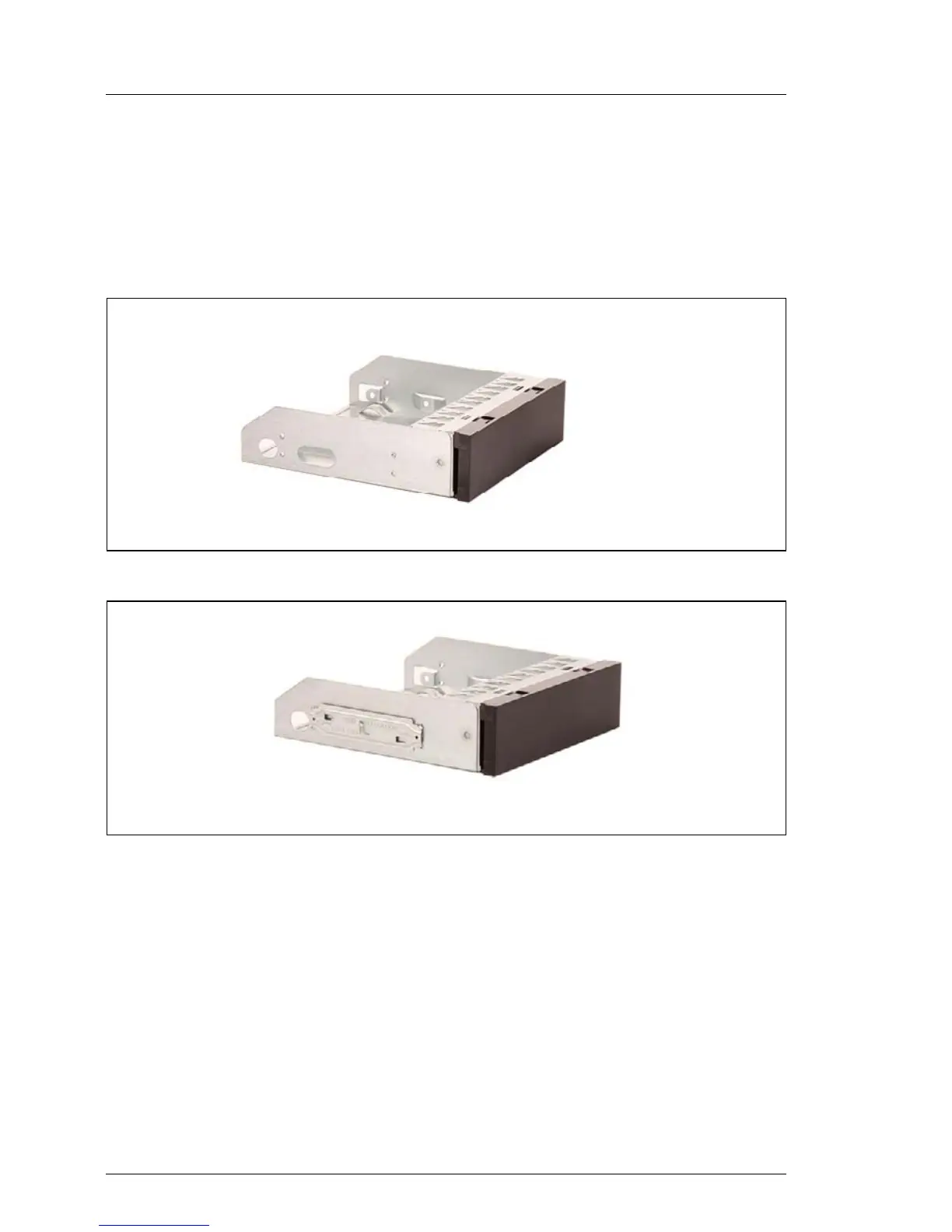

Figure 123: Dummy drive for bay 2
Figure 124: Attaching the fixation plate to the dummy drive for bay 2
