TX1310 M1
Upgrade and Maintenance Manual 227
Appendix
16.2.1.2 I/O panel connectors

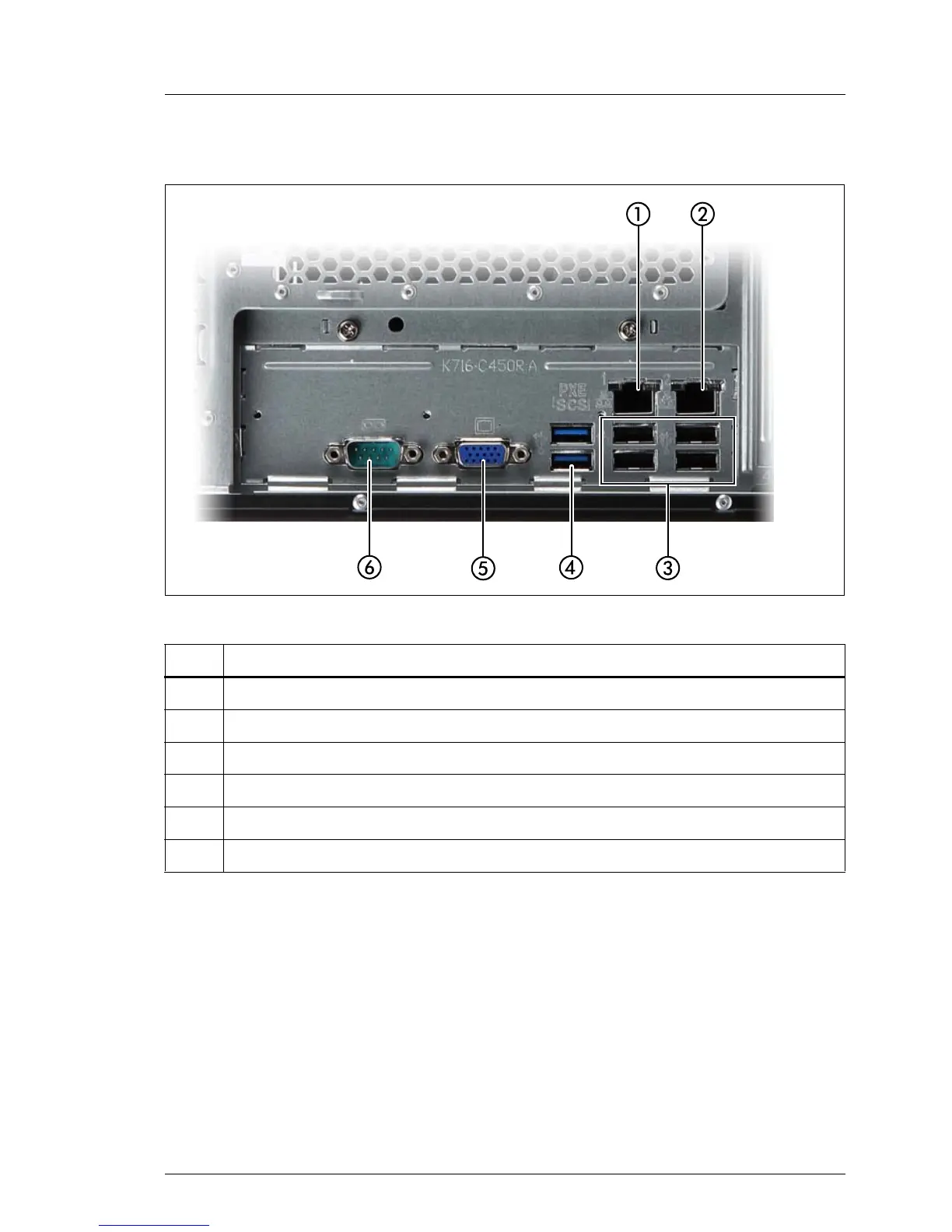

Figure 165: I/O panel connectors
I The chipset offers two integrated USB 2.0 Rate Matching Hubs (RMHs).
That enables lower power requirements and manages the transition of
the communication data rate from the high speed of the host controller to
the lower speed of USB full speed / low speed devices.
No. Description
1 Standard LAN1 connector
2 Standard LAN2 connector
3 USB 2.0 connectors (x 4)
4 USB 3.0 connectors (x 2)
5 Video connector (blue)
6 Serial connector COM1 (turquoise)
