86 Upgrade and Maintenance Manual
TX1310 M1
Hard disk drives
7.1 Basic information
7.1.1 General equipping rules
– Hard disk drives with different capacities are installed from highest to lowest
capacity.
– Hard disk drives with different rotation speeds are installed from highest to
lowest speed.
– Maximum configuration: 4x 3.5-inch HDDs
7.1.2 Mounting order

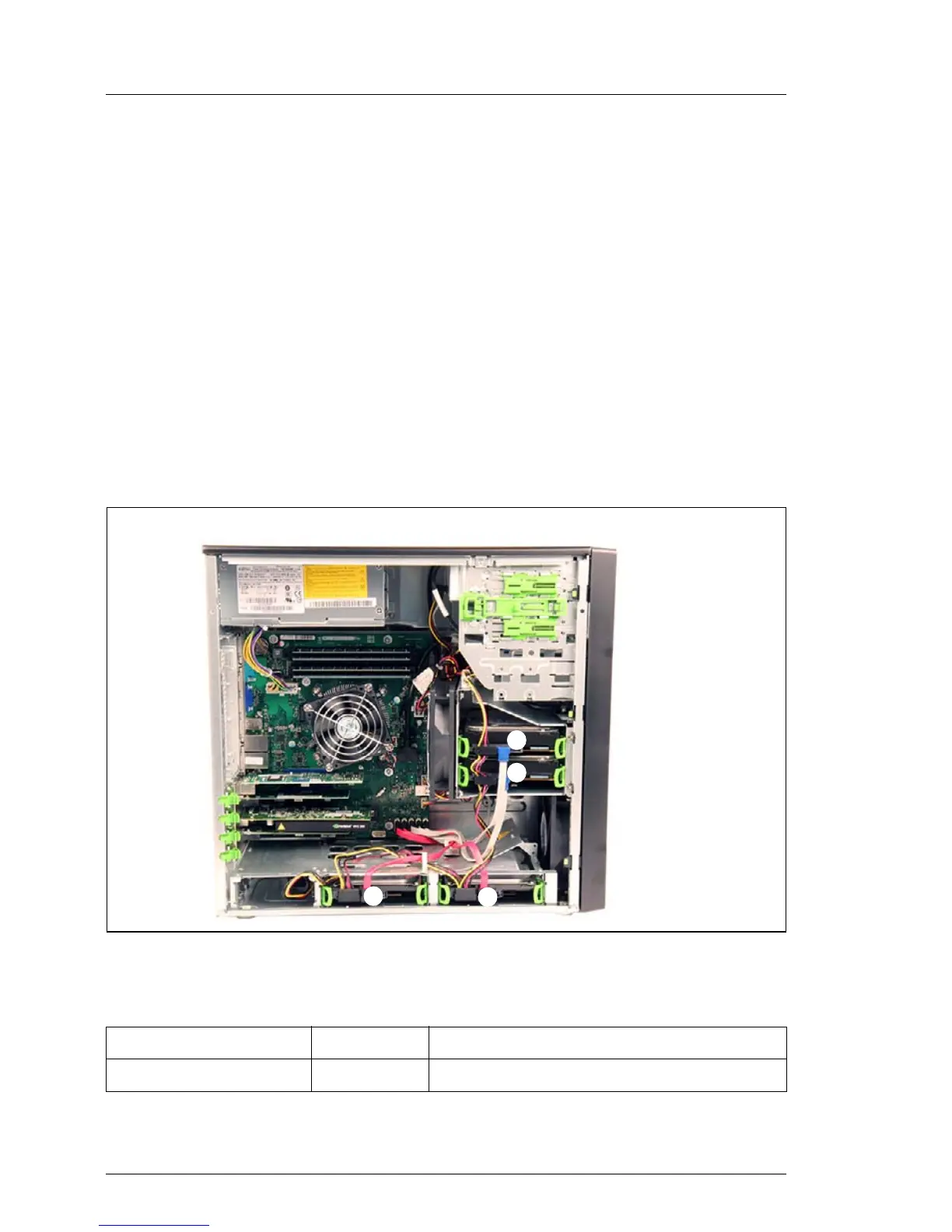

Figure 32: 3.5-inch HDD mounting order
SATA connectivity
Controller Channel Connection
PCI SATA controller 1 Drives 1-4
햲
햳
햴
햵
