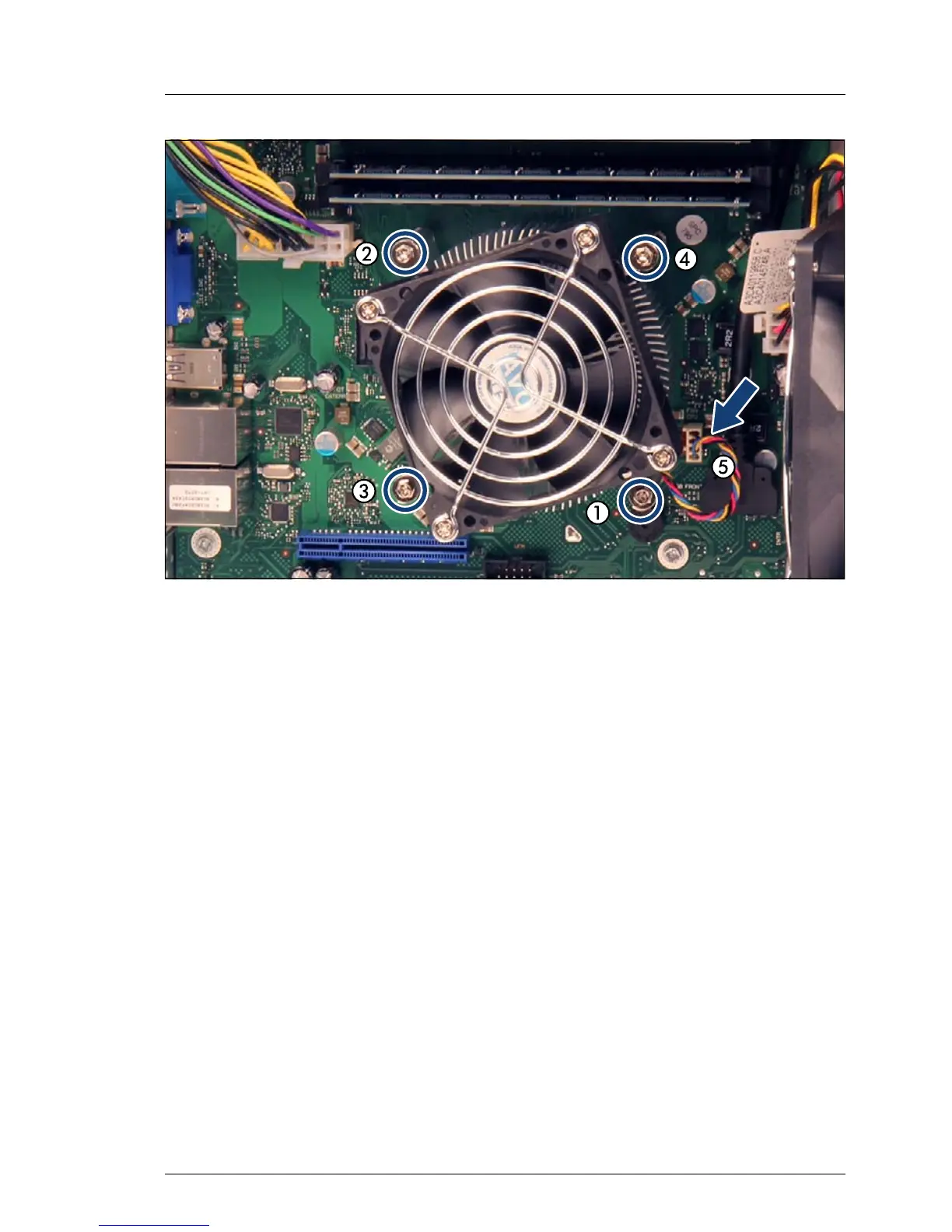

Figure 102: Installing the heat sink (B)
Ê Fasten the four captive screws on the heat sink in a crossover pattern (screw
torque: 0.6 Nm, not applicable for the Japanese market) (1-4).
Ê Connect the heat sink fan connector to system board connector FAN CPU
(5).
11.2.8 Concluding steps
Ê "Installing the side cover" on page 53
Ê "Connecting the server to the mains" on page 54
Ê If applicable, "Updating or recovering the system board BIOS" on page 68
Ê "Switching on the server" on page 55
Ê "Enabling BitLocker functionality" on page 74
