Hard disk drives
7.2.3 Installing a 3.5-inch HDD

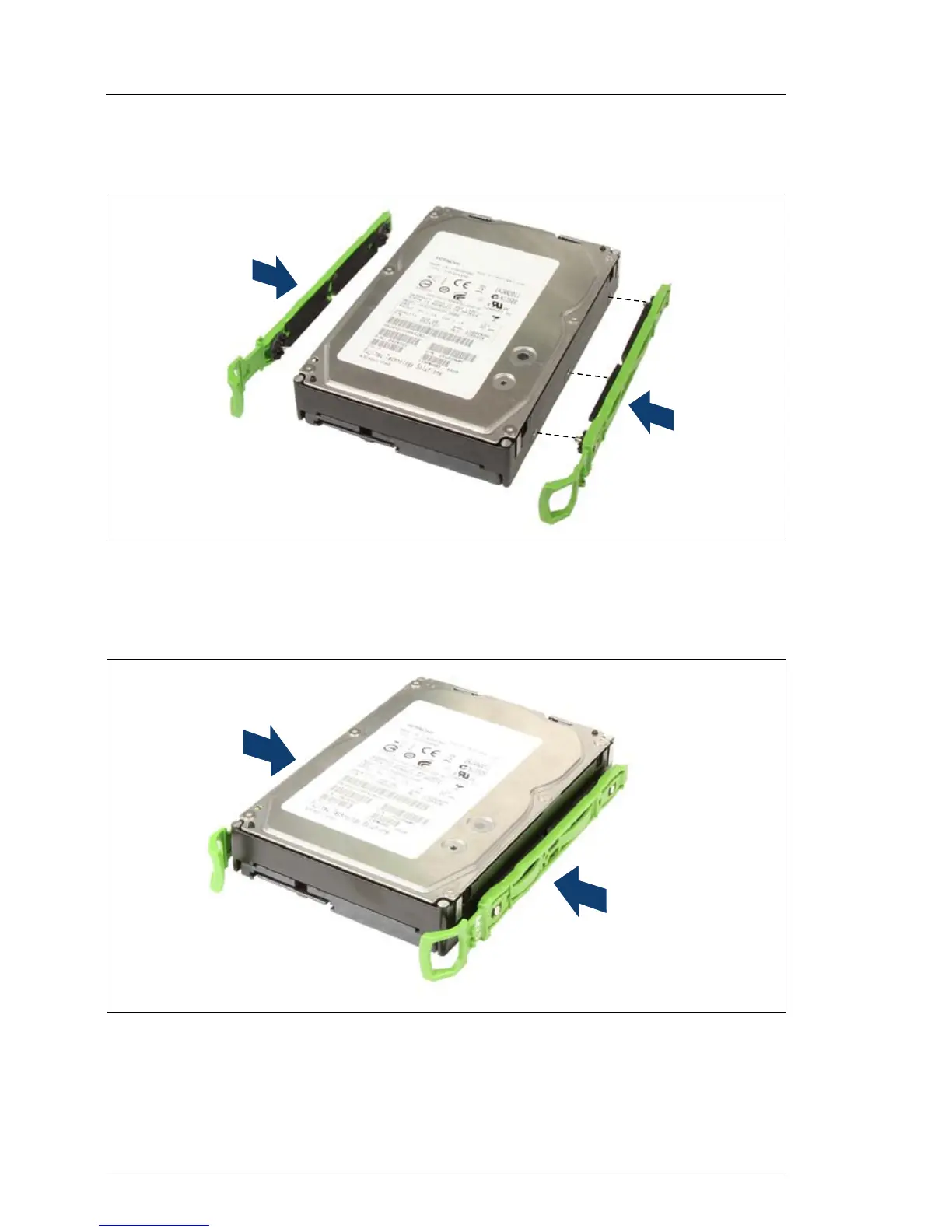

Figure 34: Aligning the Easyclick rails
Ê Align the three pins on the Easyclick rails with the screw holes on the hard
disk drive.
Figure 35: Attaching the Easyclick rails
Ê Attach an Easyclick rail on each side of the hard disk drive.
