TX1310 M1
Upgrade and Maintenance Manual 89
Hard disk drives

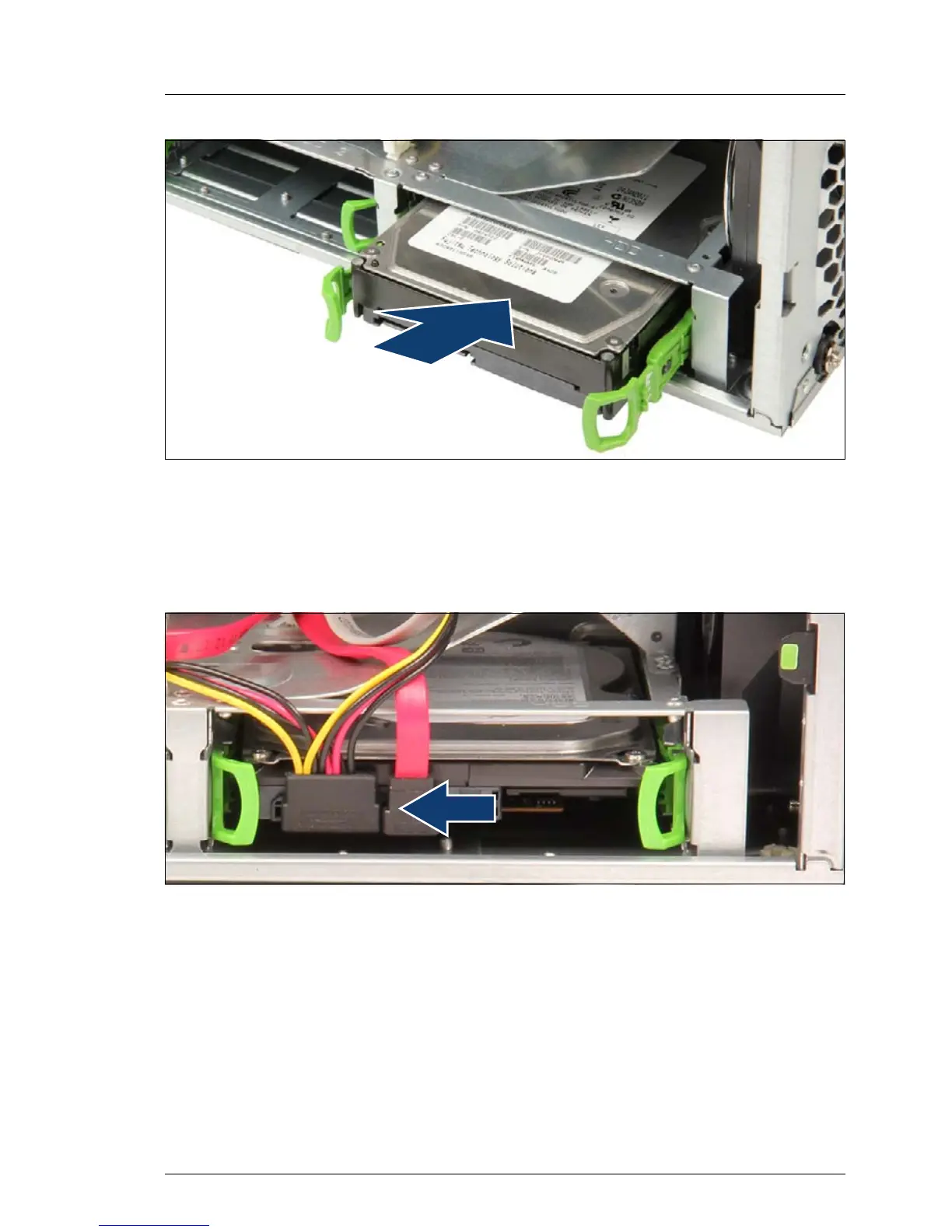

Figure 36: Inserting the 3.5-inch HDD
Ê Insert the hard disk drive into its installation bay.
Ê Slide the hard disk drive into its installation bay until the Easyclick rails click
in place.
Figure 37: Connecting the power cable (example P4 to HDD1)
Ê Connect the SATA power cable to the HDD.
I P1 is used for HDD1, P2 is used for HDD2
P3 is used for HDD3, P4 is used for HDD4
P5 is used for ODD, P6 is not used
For further cabling information, please refer to section "Cables" on
page 217.
