90 Upgrade and Maintenance Manual
TX1310 M1
Hard disk drives
Ê Connect the SATA cable to the hard disk drive and to the corresponding
controller as described in the following examples.
Example SATA cabling to SATA onboard controller

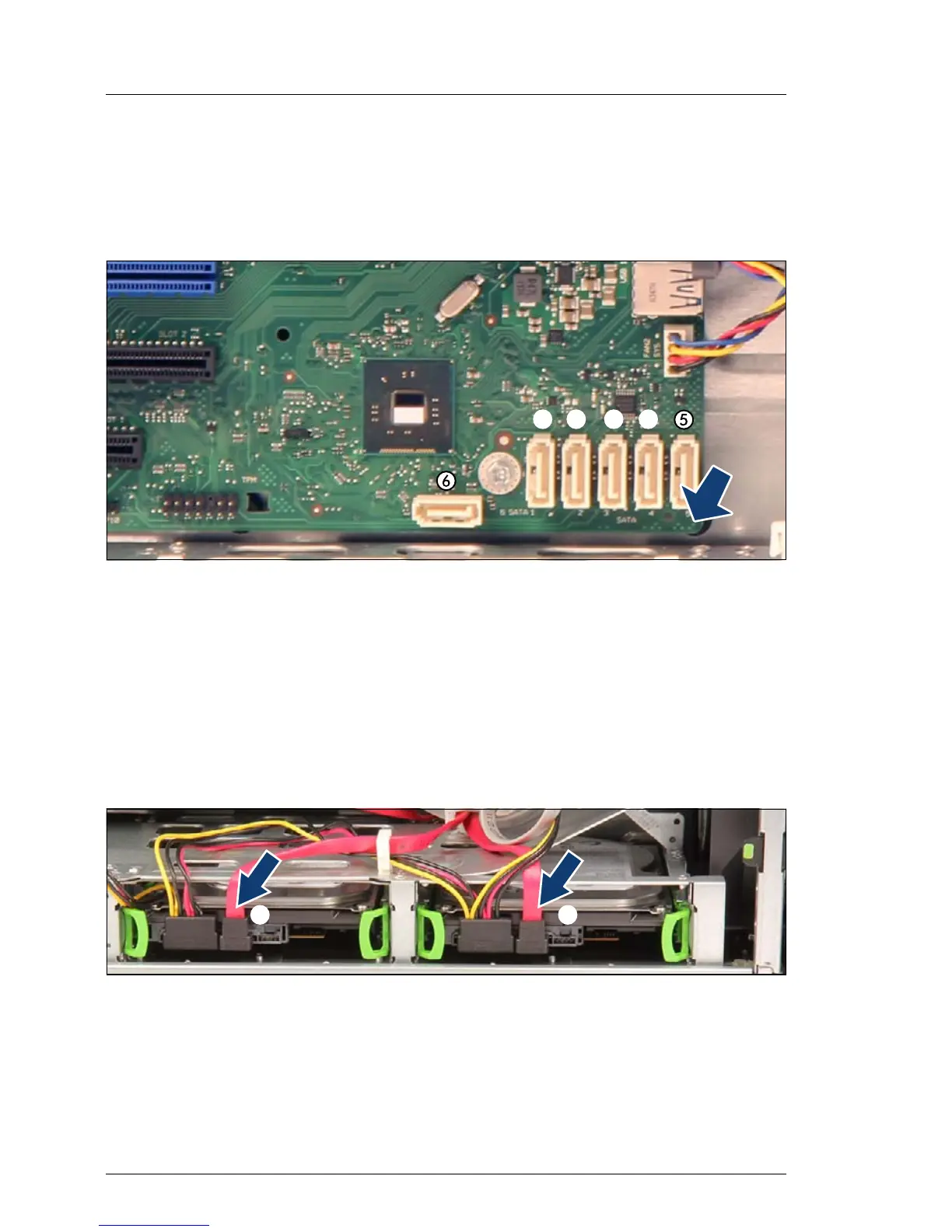

Figure 38: Connecting SATA cables to the system board
Ê If applicable, connect the SATA cable to the system board:
1 SATA cable to connector SATA1
2 SATA cable to connector SATA2
3 SATA cable to connector SATA3
4 SATA cable to connector SATA4
5 ODD cable to connector SATA5
6 free
Figure 39: Connecting SATA cables to HDD1 and HDD2
Ê Connect the corresponding SATA cable to the hard disk drive:
1 SATA cable connected to SATA1 to HDD1
2 SATA cable connected to SATA2 to HDD2
햲 햳 햴 햵
햲햳
