190 Upgrade and Maintenance Manual
TX1310 M1
Front panel and front USB
13.2.3 Installing the new front USB module

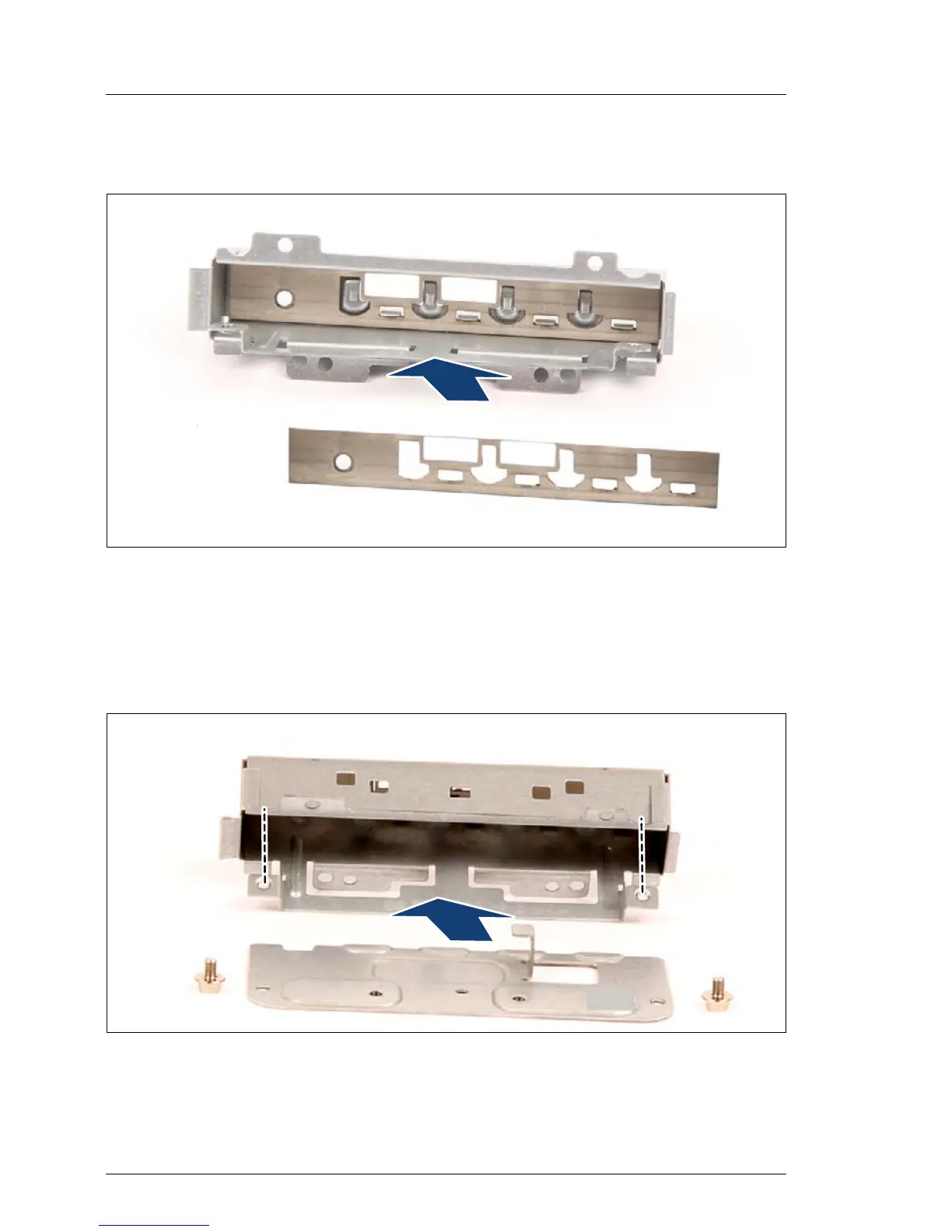

Figure 141: Installing the gasket in the carrier
Ê If applicable, insert the gasket in the carrier.
I Take care that the gasket fits with the recesses of the carrier.
Figure 142: Installing the plate into the carrier (A)
Ê Push the plate in the carrier.
