162 Upgrade and Maintenance Manual
TX1310 M1
Accessible drives
12.2.2 Removing the dummy cover of bay 2
If bay 2 will be equipped, it is necessary to break out the dummy cover of bay 2
in the front cover and to remove the EMI spring in bay 2.
I Some chassis do not have any more the EMI spring installed in bay 2.
The pictures doesn’t always show the current version.

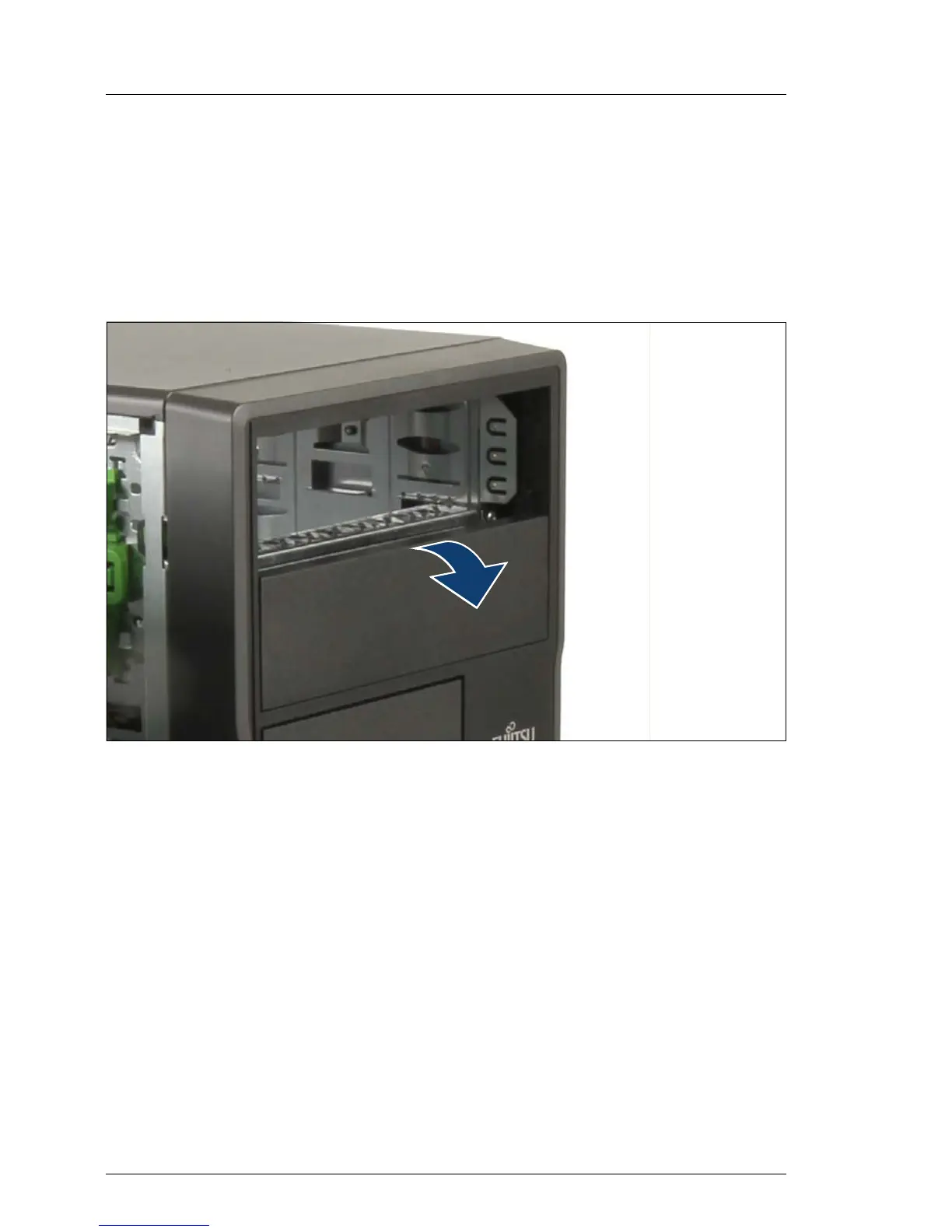

Figure 104: Removing the dummy cover of bay 2
Ê Pull out the dummy cover of bay 2.
