168 Upgrade and Maintenance Manual
TX1310 M1
Accessible drives

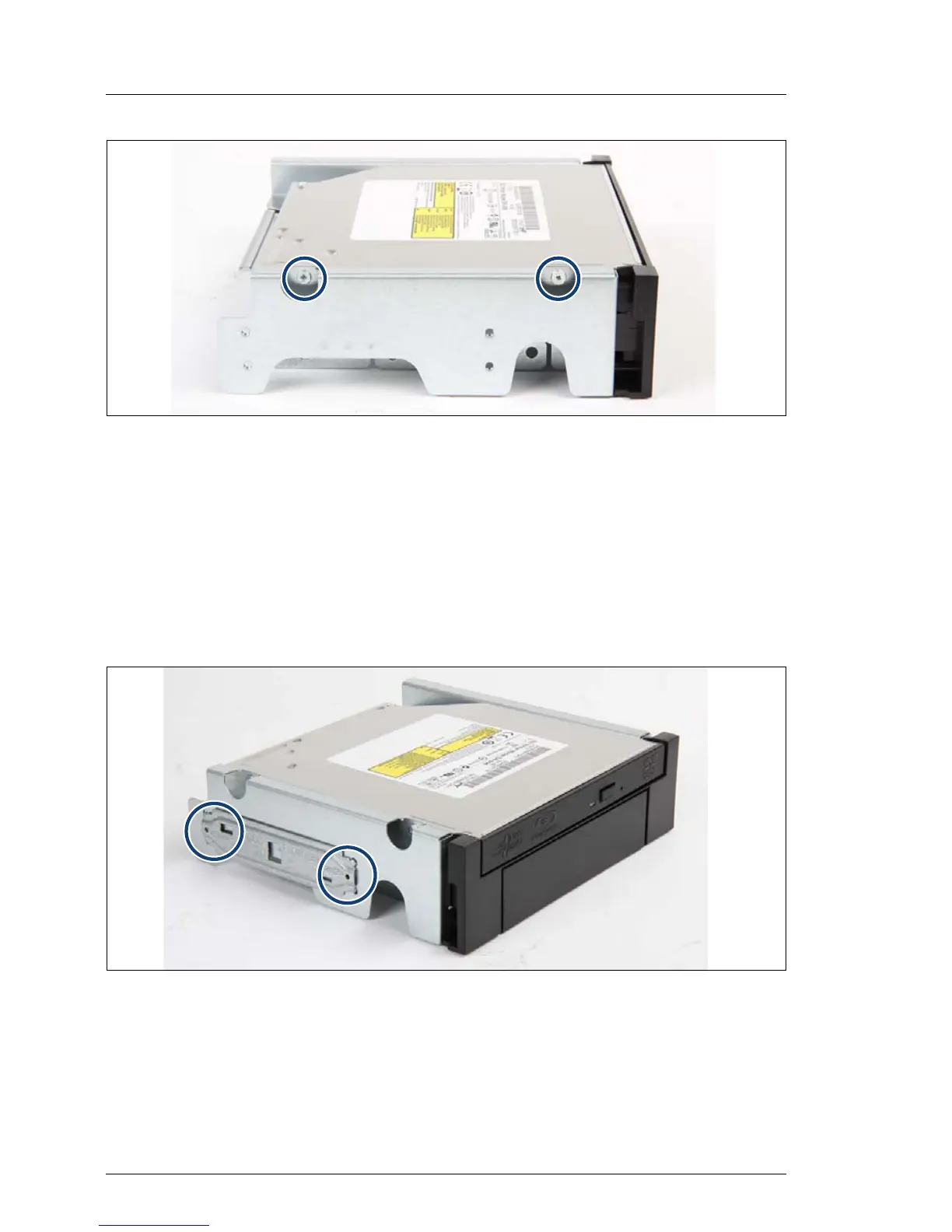

Figure 113: Mounting the slimline ODD in the slide-in unit (B)
Ê Fasten it with two M2 x 2.5 mm screws to the slide-in unit on the left side.
12.2.4.2 Preparing the slide-in unit
I There are two fixation plates for accessible drives. You need one fixation
plate for an accessible drive to be installed.
Ê Remove the fixation plate from the chassis (see figure 107).
Figure 114: Attaching the fixation plate to the slide-in unit
Ê Align the four pins on the fixation plate with the screw holes on the left side
of the slide-in unit and attach it.
