212 Upgrade and Maintenance Manual
TX1310 M1
System board and components
14.4.3 Installing the new system board
14.4.3.1 Mounting the system board

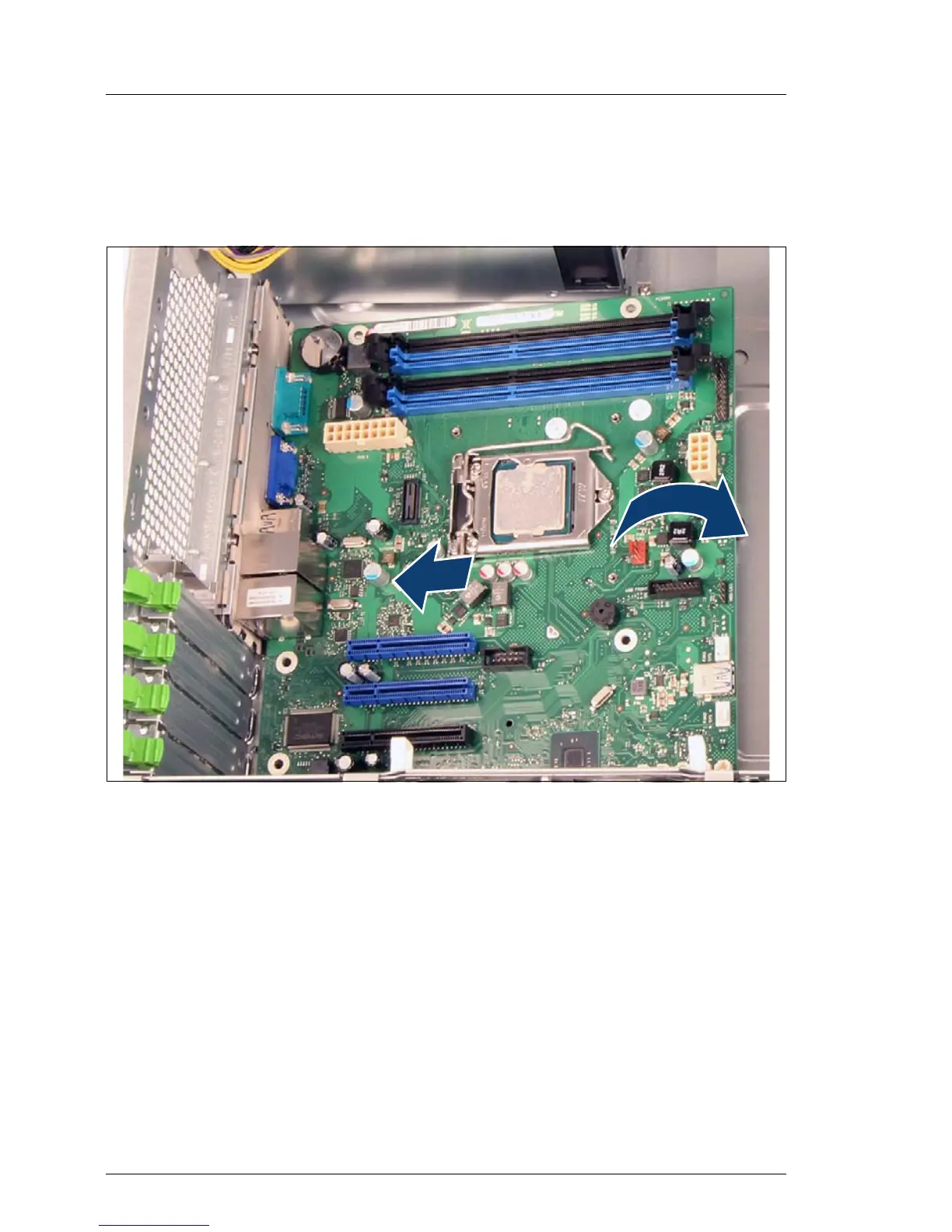

Figure 156: Installing the system board (A)
Ê Hold the new system board by the memory module ejectors and a PCI slot.
V CAUTION!
– Do not lift or handle the system board by any of its heat sinks!
– Ensure not to damage the EMI springs to comply with applicable
EMC regulations and satisfy cooling requirements and fire
protection measures.
Ê At a slight angle, lower the system board into the chassis.
