Fujitsu PRIMERGY TX1310 M1

174 Upgrade and Maintenance Manual TX1310 M1
Accessible drives
12.3.3 Removing a slimline optical disk drive (ODD)

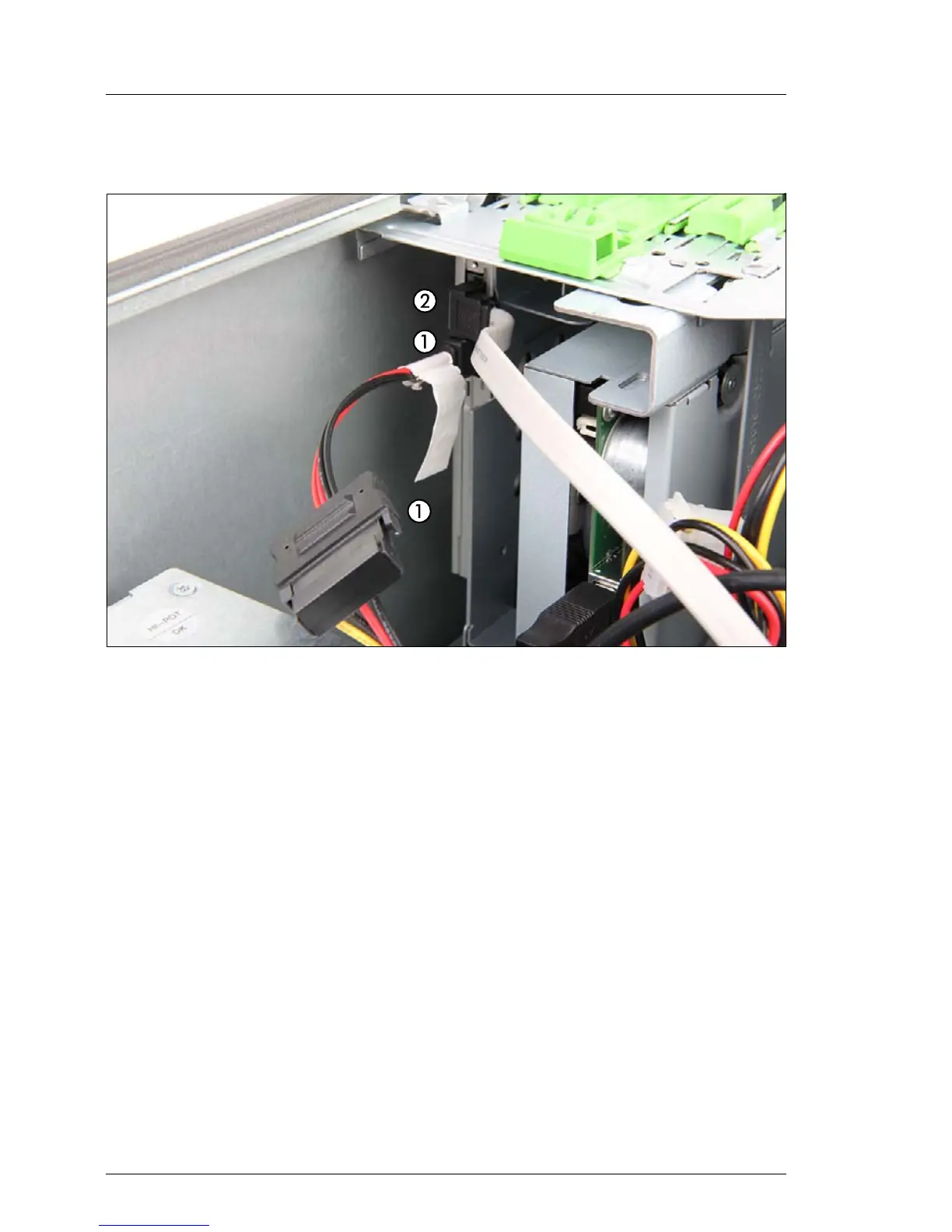

Figure 121: Disconnecting cables to the slimline drive
Ê Disconnect all cables from the slimline optical disk drive.
1 Power adapter cable from the power cable connector P8 and the
slimline drive.
2 SATA cable
