TX1310 M1
Upgrade and Maintenance Manual 171
Accessible drives
12.2.5.1 Preparing the backup drive
I There are two fixation plates for accessible drives. You need one fixation
plate for an accessible drive to be installed.
Ê Remove the fixation plate from the chassis (see figure 107).

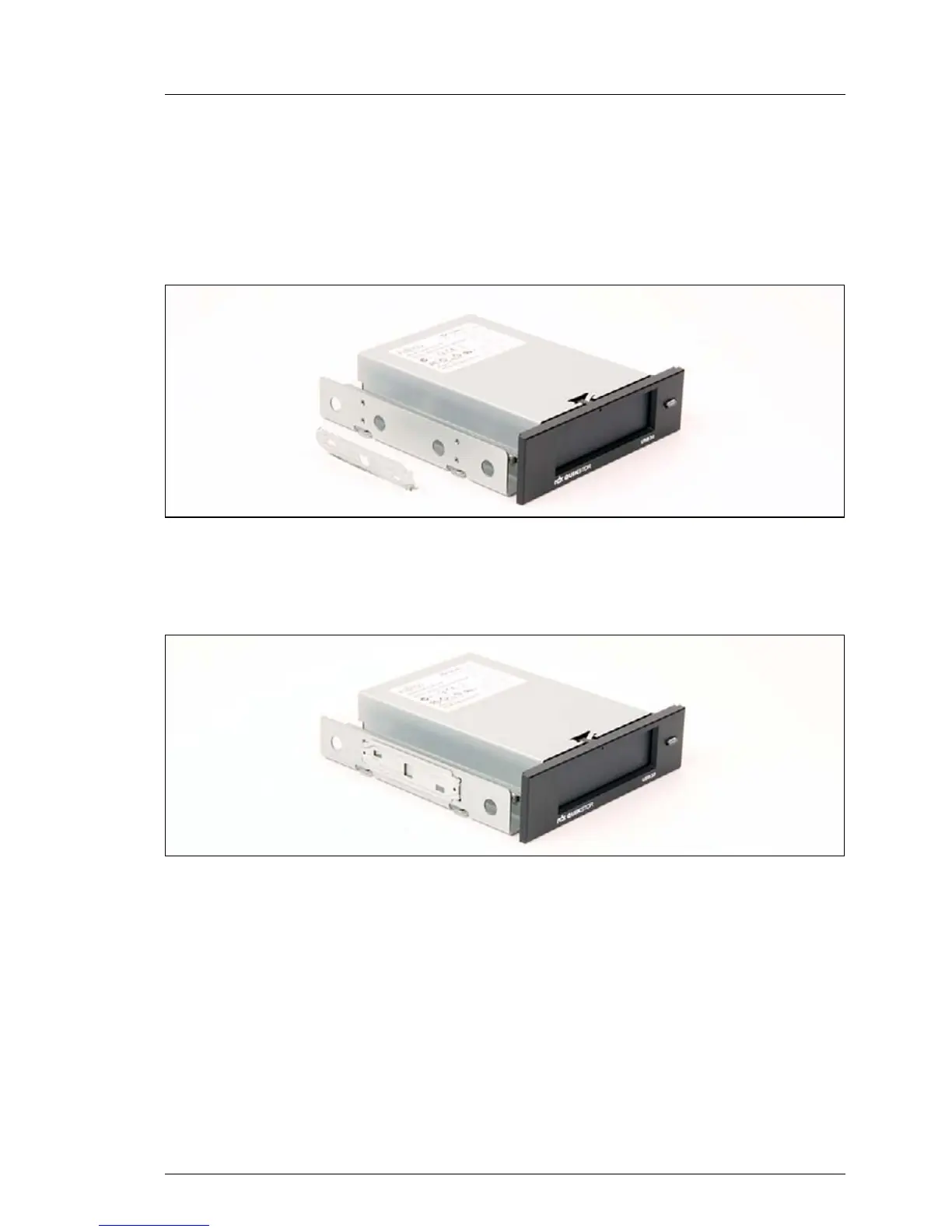

Figure 118: Attaching the fixation plate to the backup drive (A)
Ê Align the four pins on the fixation plate with the screw holes on the backup
drive.
Figure 119: Attaching the fixation plate to the backup drive (B)
Ê Attach the fixation plate on the left side of the backup drive.
