154 Upgrade and Maintenance Manual
TX1310 M1
Processor
11.2.6 Applying thermal paste
I For the Japanese market, the service engineer must follow the
instruction provided separately.
I If the processor upgrade or replacement kit contains a new CPU heat
sink, a thin layer of thermal compound has already been pre-applied to
its lower surface. In this case, please proceed with section "Installing the
heat sink" on page 156.

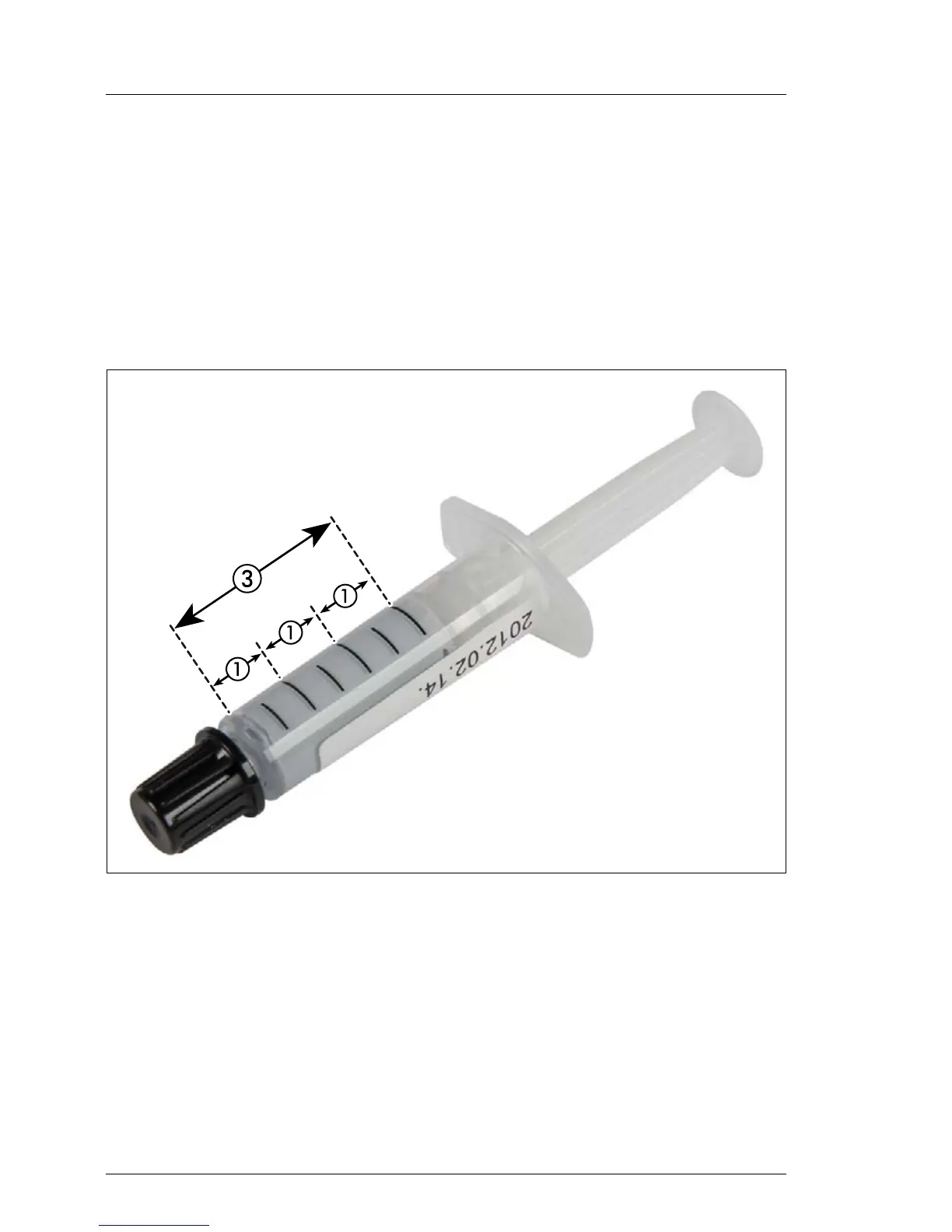

Figure 99: Thermal paste syringe
One thermal compound syringe (FTS-FSP:P304000004) contains thermal
paste for three processors.
