186 Upgrade and Maintenance Manual
TX1310 M1
Front panel and front USB
13.1.5 Installing the On/Off button and the HDD activity
LED

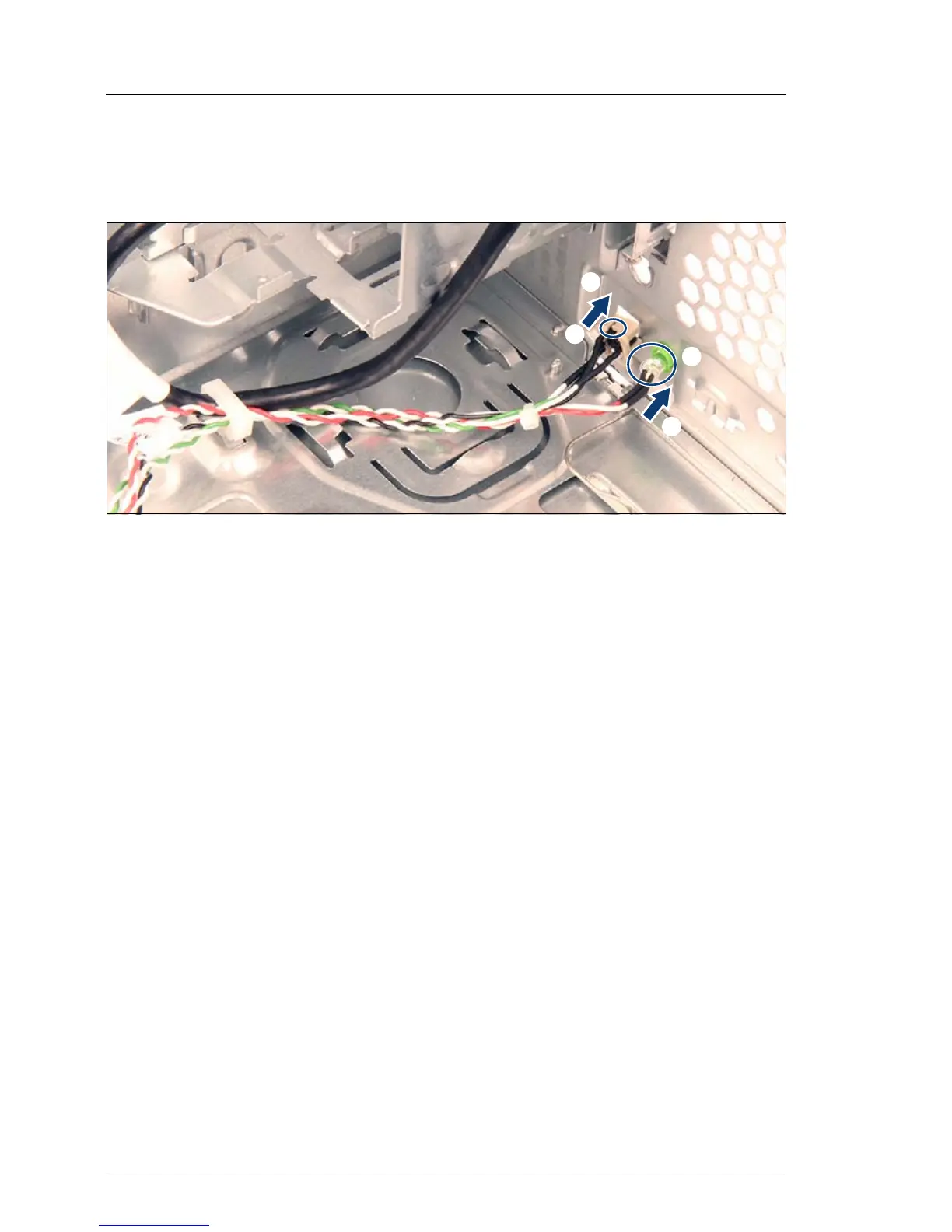

Figure 137: Installing the On/Off button
Ê Insert the On/Off button in the direction shown until it snaps in place (1).
I Take care of the orientation of the On/Off button. If it is installed in the
other direction, it does not work properly.
Ê Insert the HDD activity LED in the direction shown until it snaps into
place (2).
13.1.6 Concluding steps
Ê "Installing the HDD cage" on page 59
Ê "Installing the front cover" on page 48
Ê Install all removed accessible drives as described in section "Installing
accessible drives" on page 49.
Ê "Installing the side cover" on page 53
Ê "Connecting the server to the mains" on page 54
Ê "Switching on the server" on page 55
Ê "Enabling BitLocker functionality" on page 74
