Fujitsu PRIMERGY TX1310 M1

112 Upgrade and Maintenance Manual TX1310 M1
System fans
8.3.3 Installing the new system fan 1

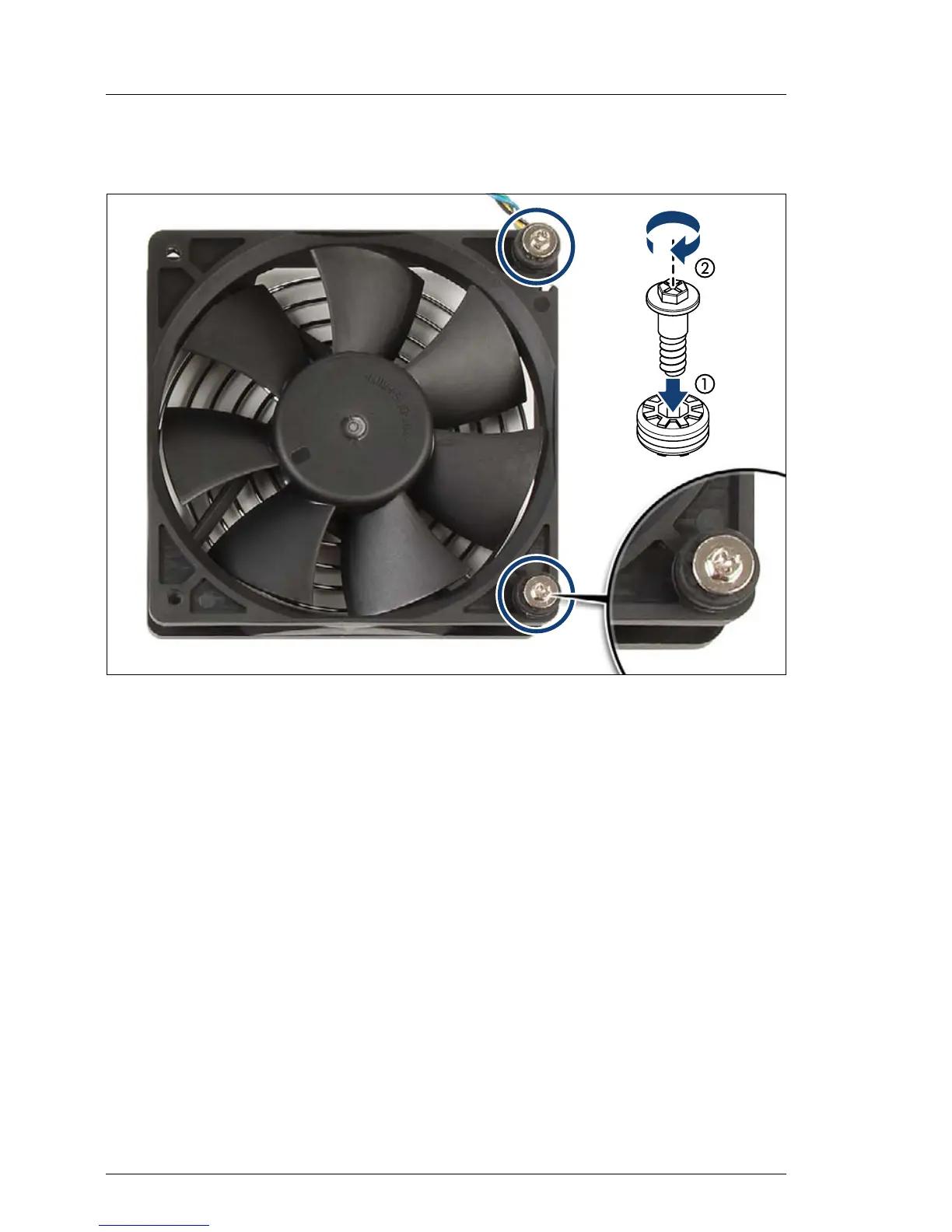

Figure 60: Installing the bushings
Ê Place the two bushings on the fan (1, see circles).
Ê Secure each bushing on the fan with one fan screw (2).
