TX1310 M1
Upgrade and Maintenance Manual 123
Expansion cards and backup units
9.3 Expansion cards
9.3.1 Installing expansion cards
9.3.1.1 Preliminary steps
Ê "Disabling BitLocker functionality" on page 63
Ê "Shutting down the server" on page 40
Ê "Disconnecting the server from the mains" on page 41
Ê "Removing the side cover" on page 42
9.3.1.2 Removing the PCI slot bracket

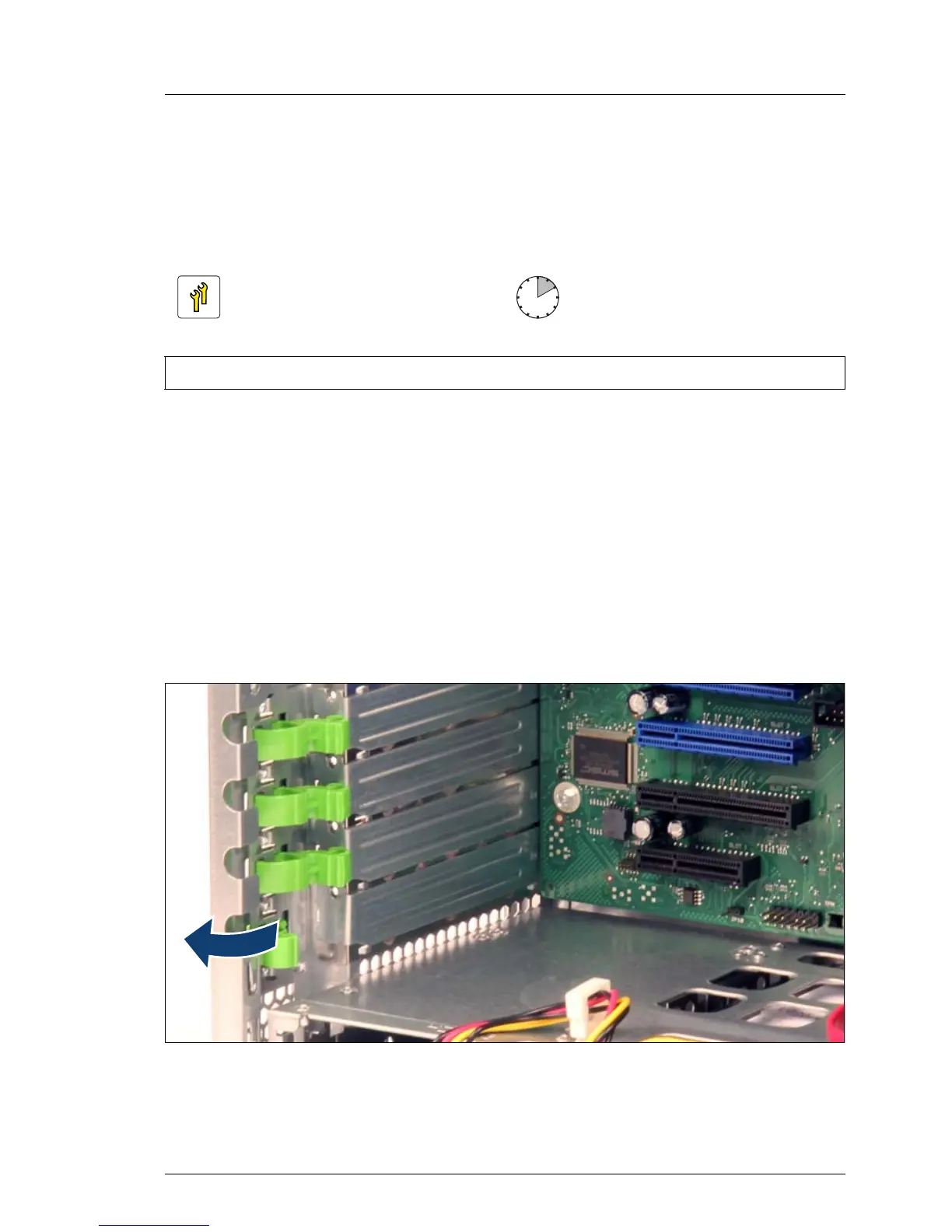

Figure 72: Removing the PCI slot bracket (A)
Ê Press slightly on the upper end and swing outwards.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Software: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver (only for installing slot brackets)
