16.2.2 Connectors and indicators on the front panel

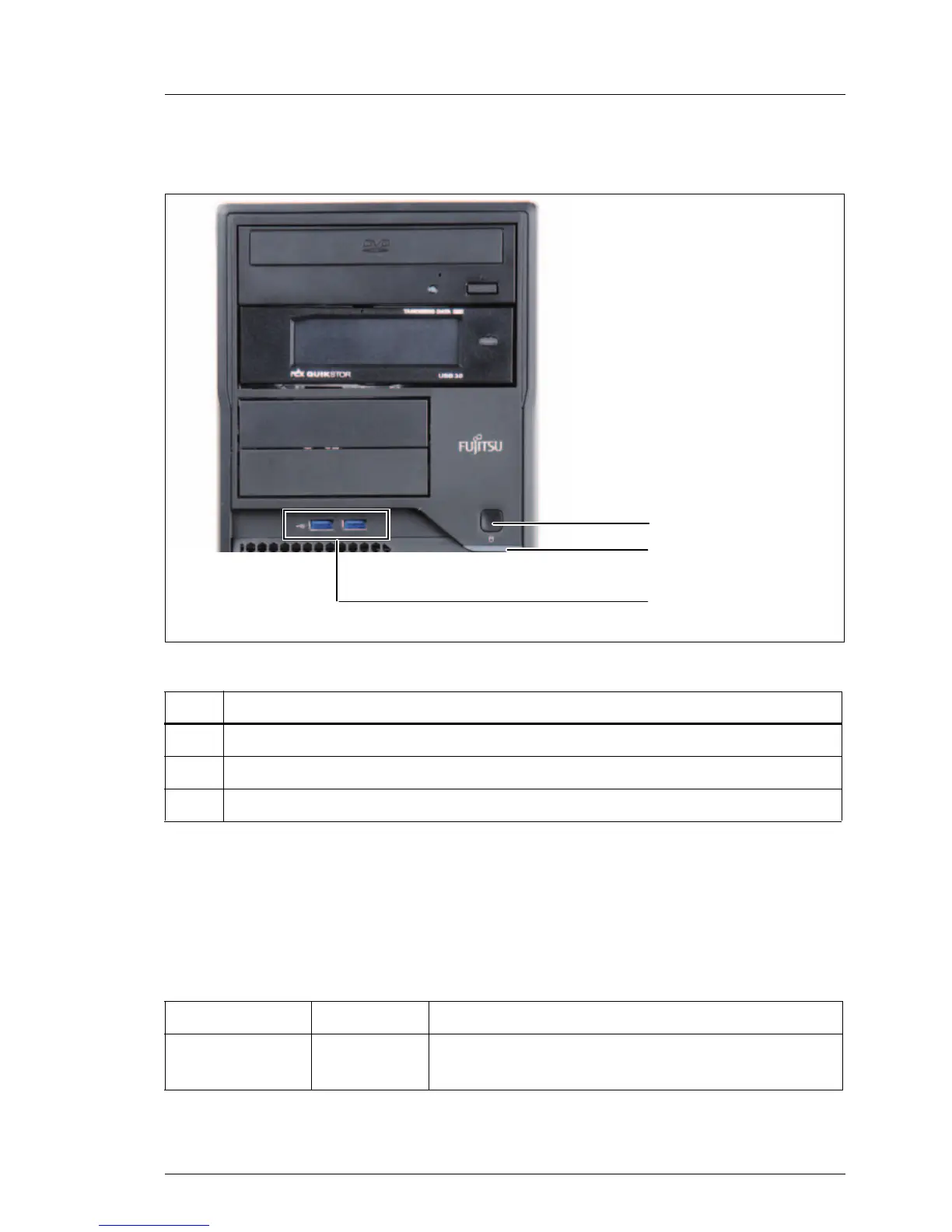

Figure 167: Front panel connectors and indicators
I The On/Off button is used to switch the server on or off. If the system is
running an ACPI-compliant operating system, pressing the On/Off button
will perform a graceful shutdown.
Status indicators
Pos. Component
1 On/Off button / Power-on indicator
2 HDD activity indicator
3 USB 3.0 connectors (x2)
Indicator Status Description
HDD activity
indicator
green
flashing
data access in progress
햴
햲
햳
