128 Upgrade and Maintenance Manual
TX1310 M1
Expansion cards and backup units

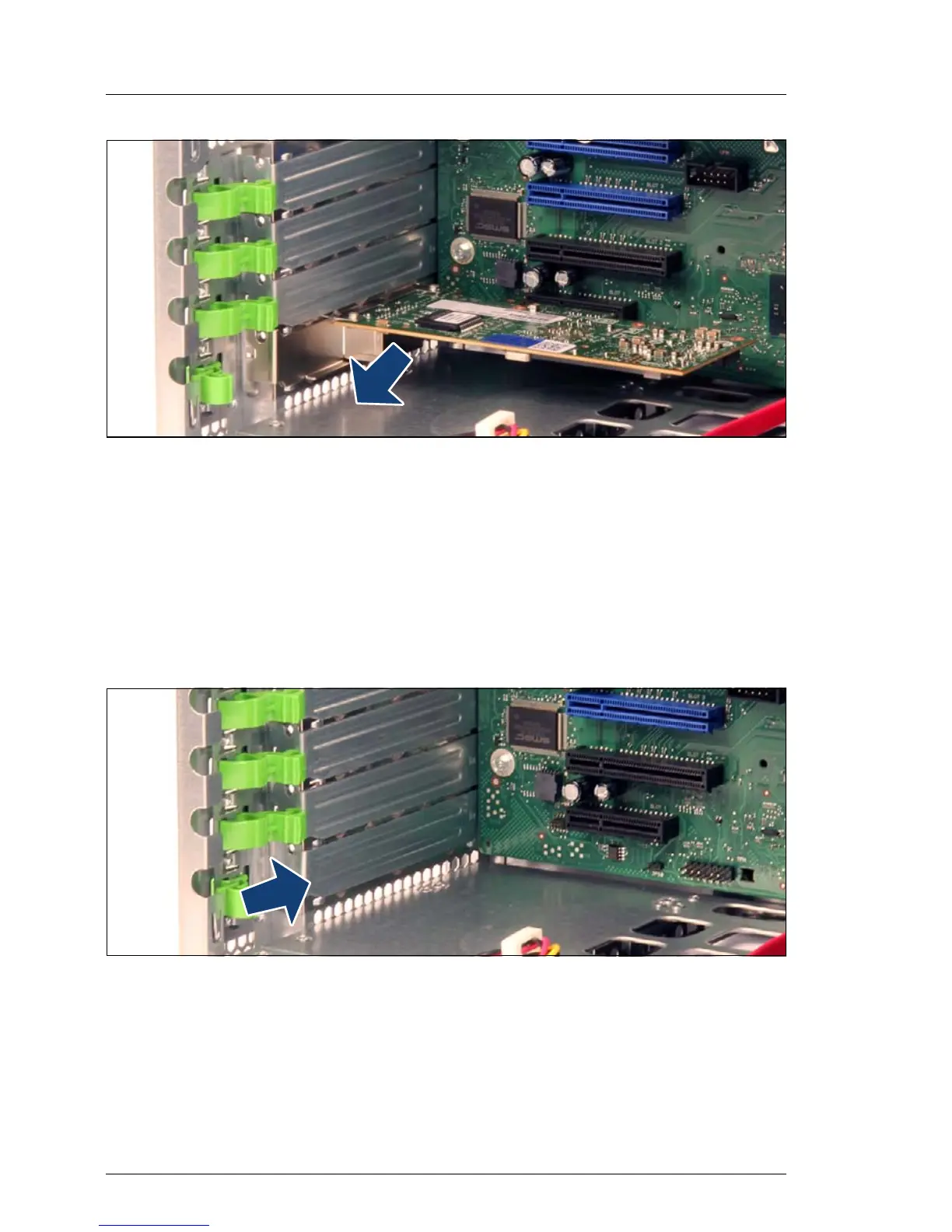

Figure 77: Removing an expansion card (B)
Ê Carefully remove the expansion card from its slot.
9.3.2.3 Installing a PCI slot bracket
V CAUTION!
Always replace slot brackets into unused PCI slot openings to comply
with applicable EMC regulations and satisfy cooling requirements.
Figure 78: Installing a PCI slot bracket (A)
Ê Insert a PCI slot bracket into the unused PCI slot opening.
