TX1310 M1
Upgrade and Maintenance Manual 109
System fans
8.3 Replacing the system fan 1
8.3.1 Preliminary steps
Ê "Shutting down the server" on page 40
Ê "Disconnecting the server from the mains" on page 41
Ê "Getting access to the component" on page 42
Ê "Removing the HDD cage" on page 56
8.3.2 Removing the defective system fan 1

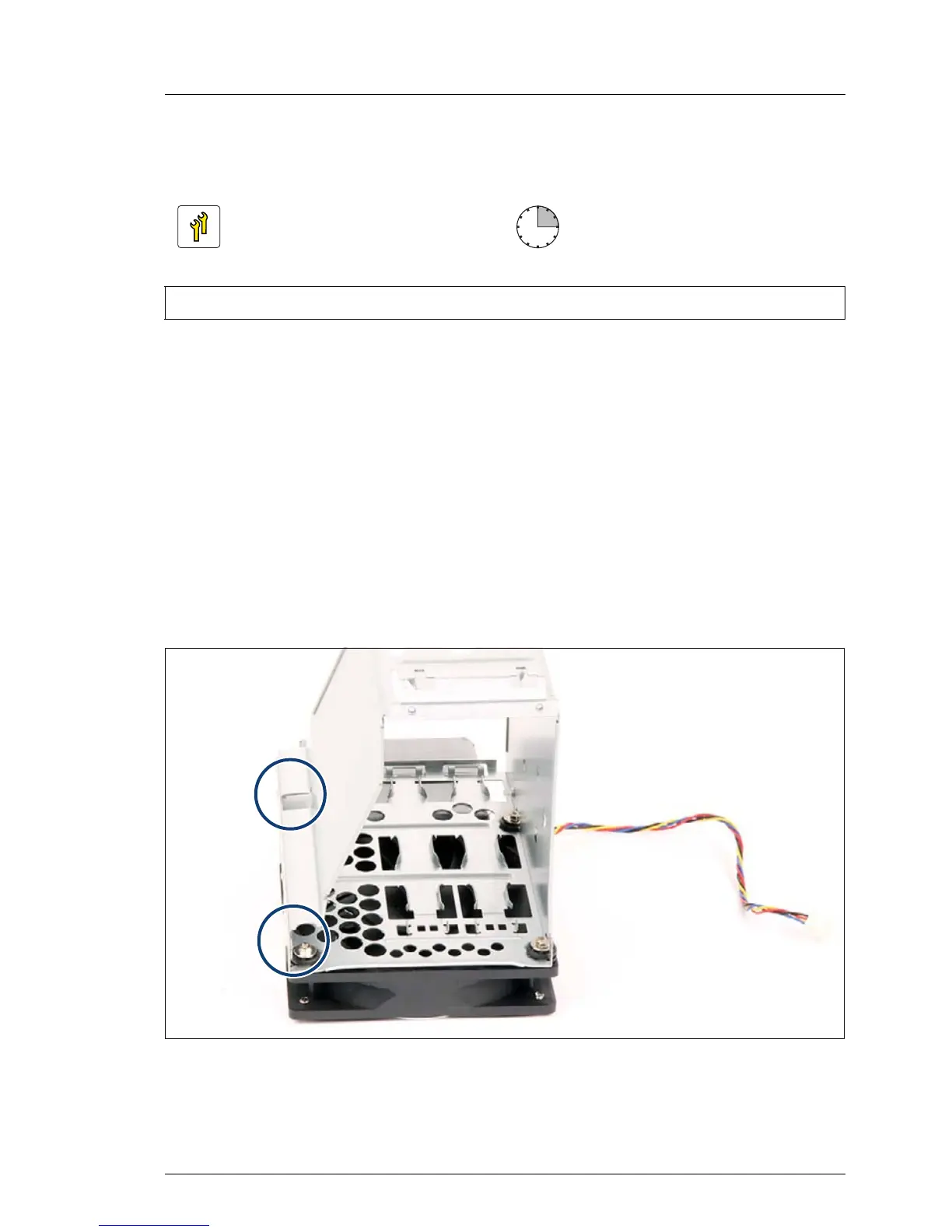

Figure 56: HDD cage with system fan 1
Ê Remove the two screws (see circles). The other two screws will be removed
later.
Upgrade and Repair Unit
(URU)
Hardware: 15 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
