188 Upgrade and Maintenance Manual
TX1310 M1
Front panel and front USB
13.2.2 Removing the defective front USB module
Ê Disconnect the front USB cable from the system board.

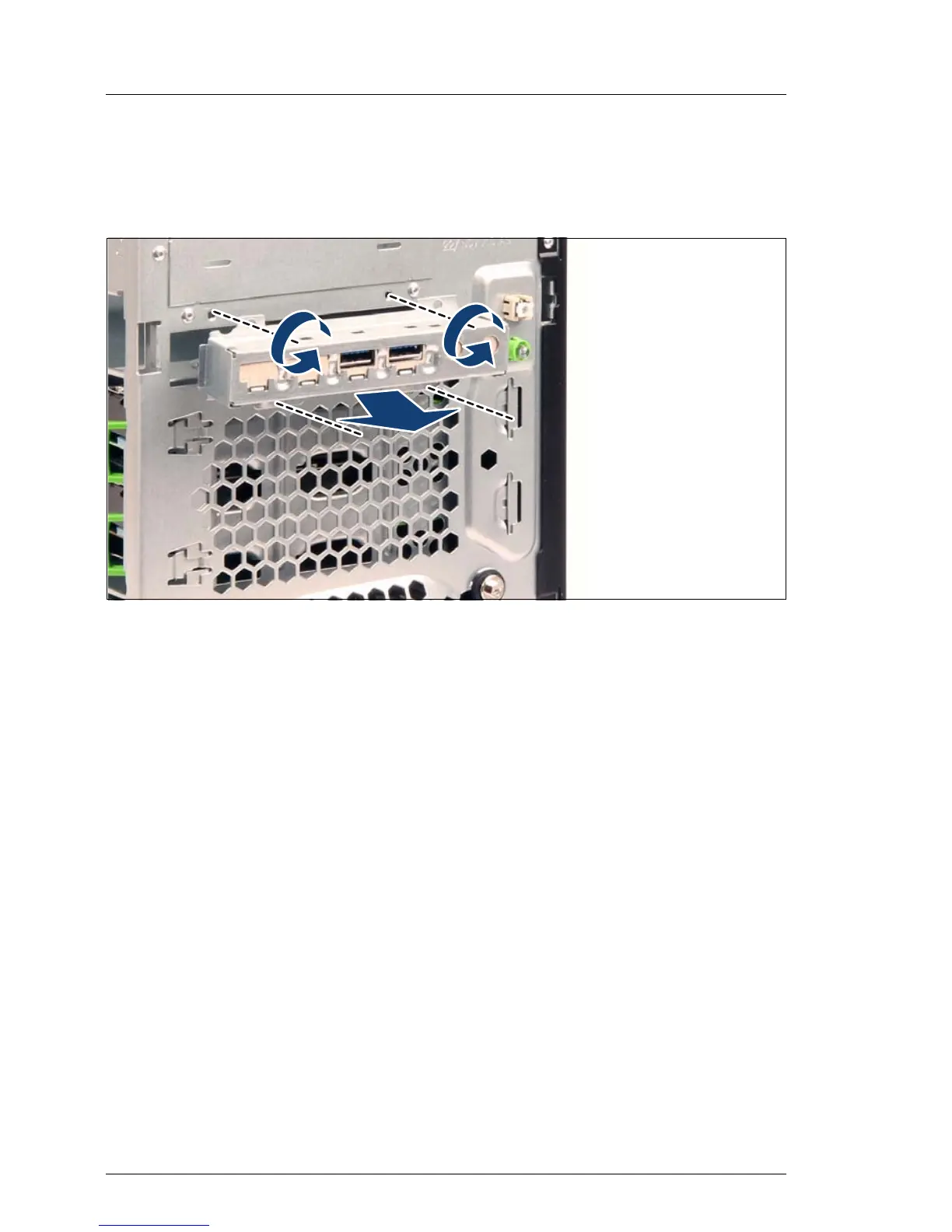

Figure 138: Removing the front USB module
Ê Remove the four screws of the front USB module
Ê Remove the front USB module.
