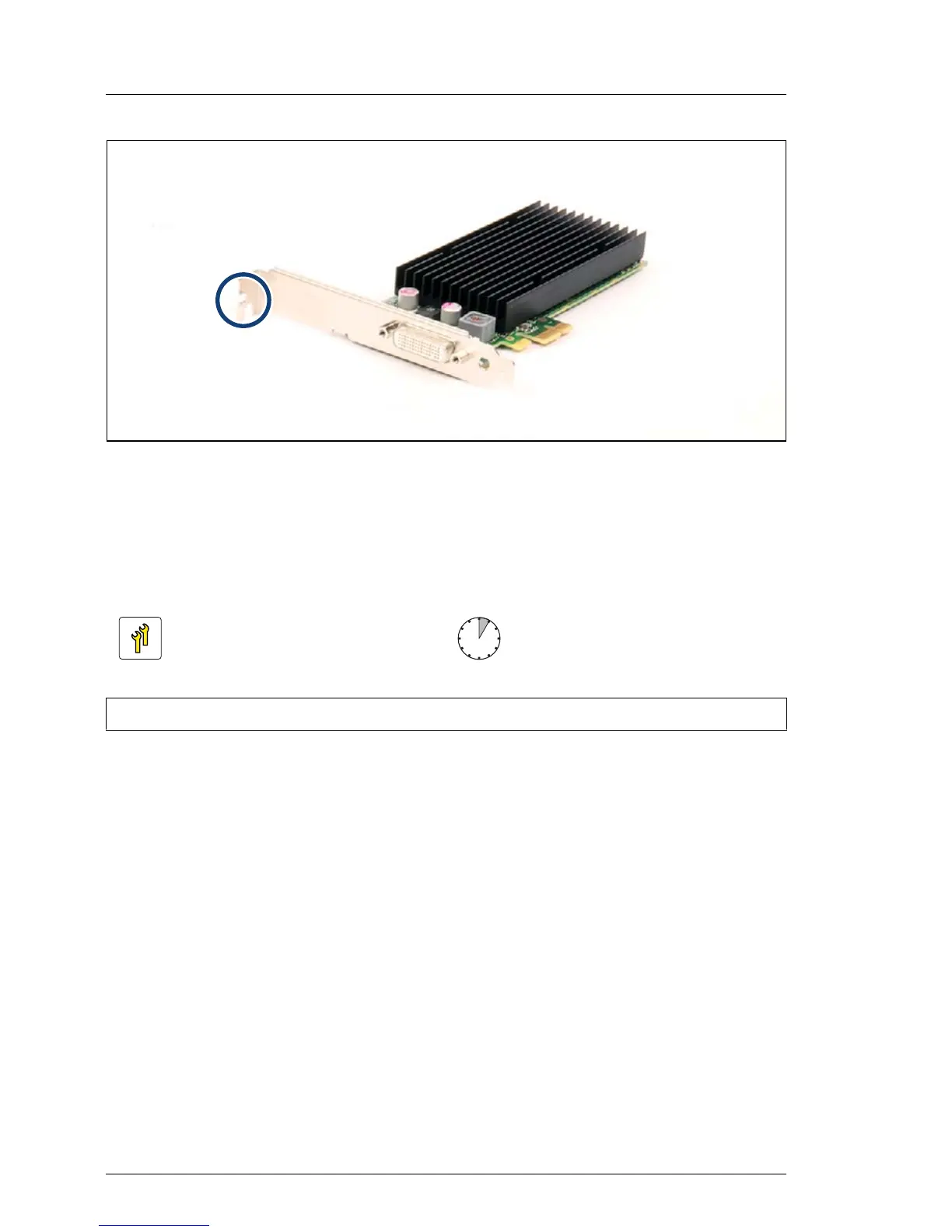

Figure 71: Securing the slot bracket - NVIDIA NVS 300
Ê Secure the screw of the slot bracket to the chassis.
9.2.2 Removing a slot bracket
Removing the slot bracket
Ê Remove the two screws.
Ê Remove the controller from the mounting tabs on the slot bracket.
Upgrade and Repair Unit
(URU)
Hardware: 5 minutes
Tools: Phillips PH2 / (+) No. 2 screw driver
