TX1310 M1
Upgrade and Maintenance Manual 121
Expansion cards and backup units
Example network adapter NVIDIA NVS 300

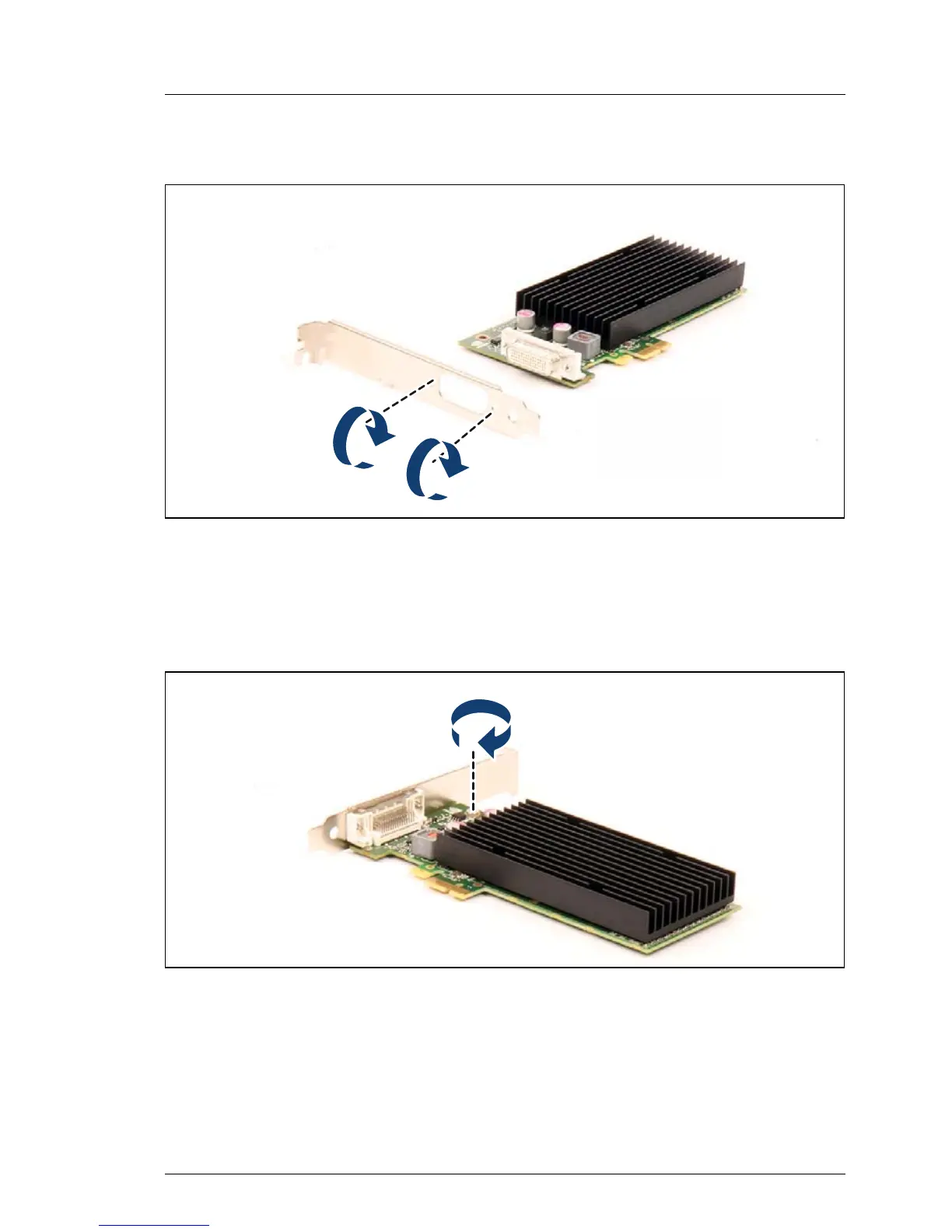

Figure 69: Placing the slot bracket (A) - NVIDIA NVS 300
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Ê Fasten the slot bracket to the controller with two hexagon bolts.
Figure 70: Placing the slot bracket (B) - NVIDIA NVS 300
Ê Fasten the slot bracket to the controller with a third M3 x 4.5 mm screw.
