120 Upgrade and Maintenance Manual
TX1310 M1
Expansion cards and backup units
Example network adapter Ethernet Adapter Intel
®
Gbit CT2

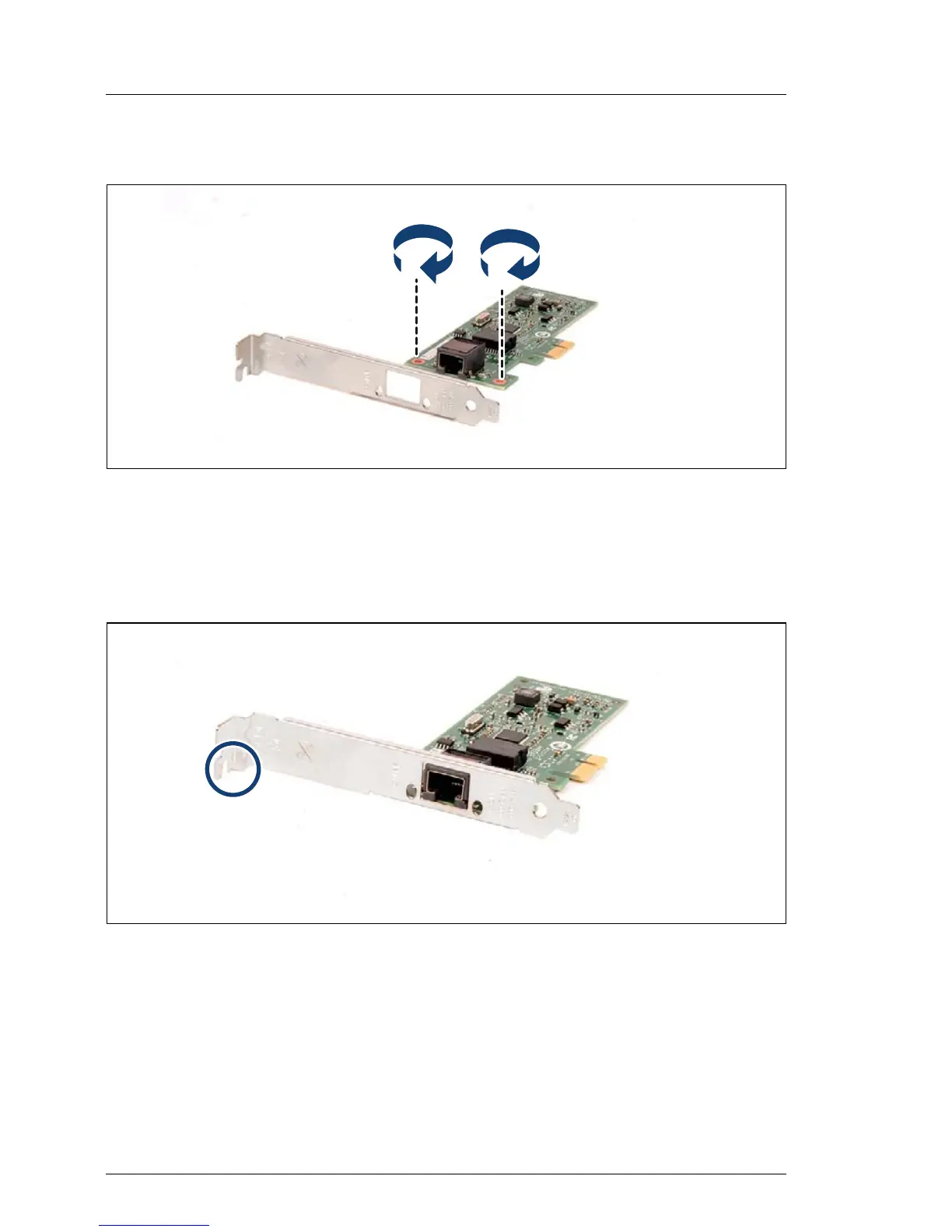

Figure 67: Placing the slot bracket - Intel
®
Gbit CT2
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Ê Fasten the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 68: Securing the slot bracket - Intel
®
Gbit CT2
Ê Secure the screw of the slot bracket to the chassis.
