TX1310 M1
Upgrade and Maintenance Manual 119
Expansion cards and backup units
Example network adapter Ethernet Server Adapter Intel
®
i350-T2

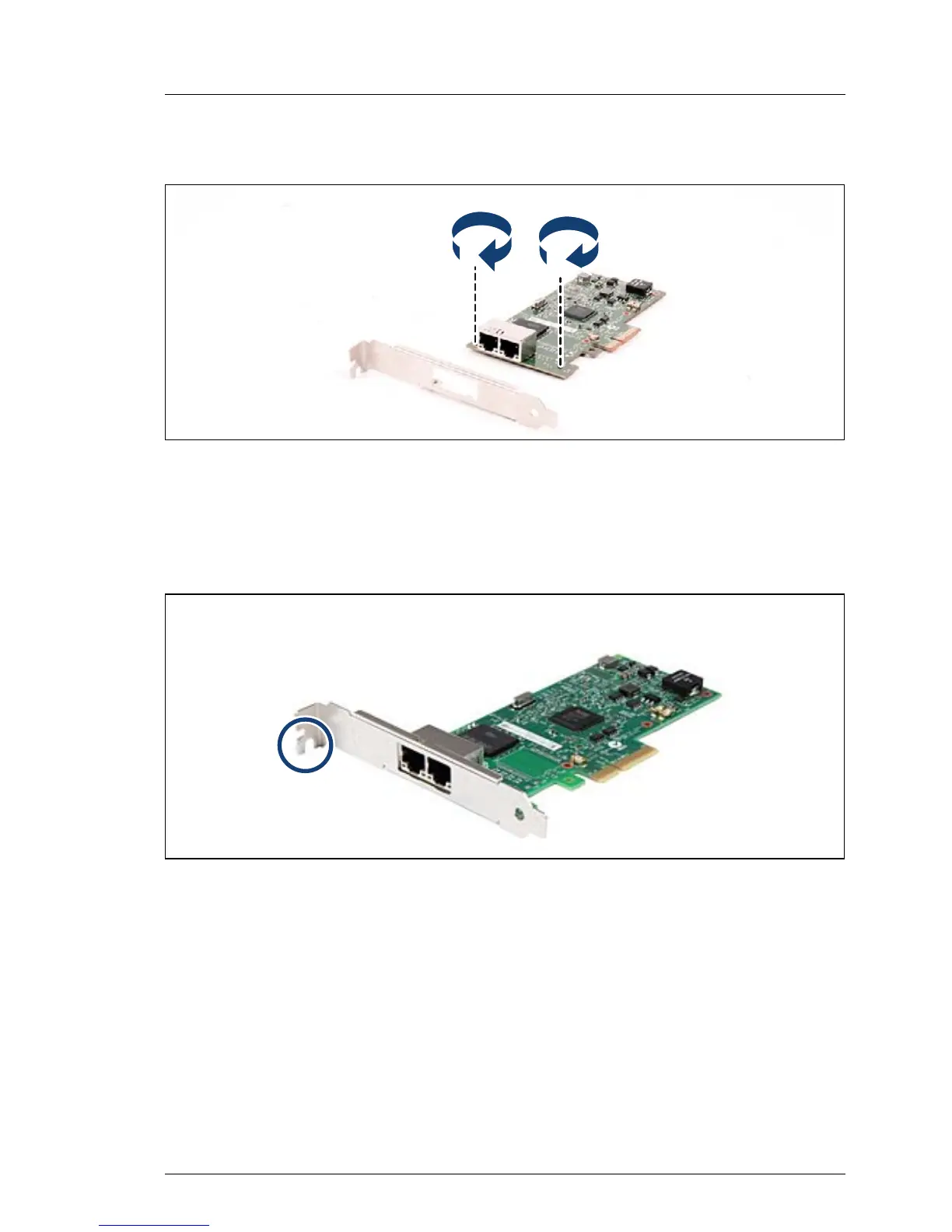

Figure 65: Placing the slot bracket - Intel
®
i350-T2
Ê Carefully shift the slot bracket towards the controller until the plug shells
engage with the cut-outs in the slot bracket connector panel.
Ê Fasten the slot bracket to the controller with two M3 x 4.5 mm screws.
Figure 66: Securing the slot bracket - Intel
®
i350-T2
Ê Secure the screw of the slot bracket to the chassis.
