Fujitsu PRIMERGY TX1310 M1

TX1310 M1 Upgrade and Maintenance Manual 59
Basic hardware procedures
4.8.2 Installing the HDD cage
I Do not completely place down the HDD cage into the chassis. First,
connect the fan cable which is located close to the HDD cage before you
place down the HDD cage into the chassis.

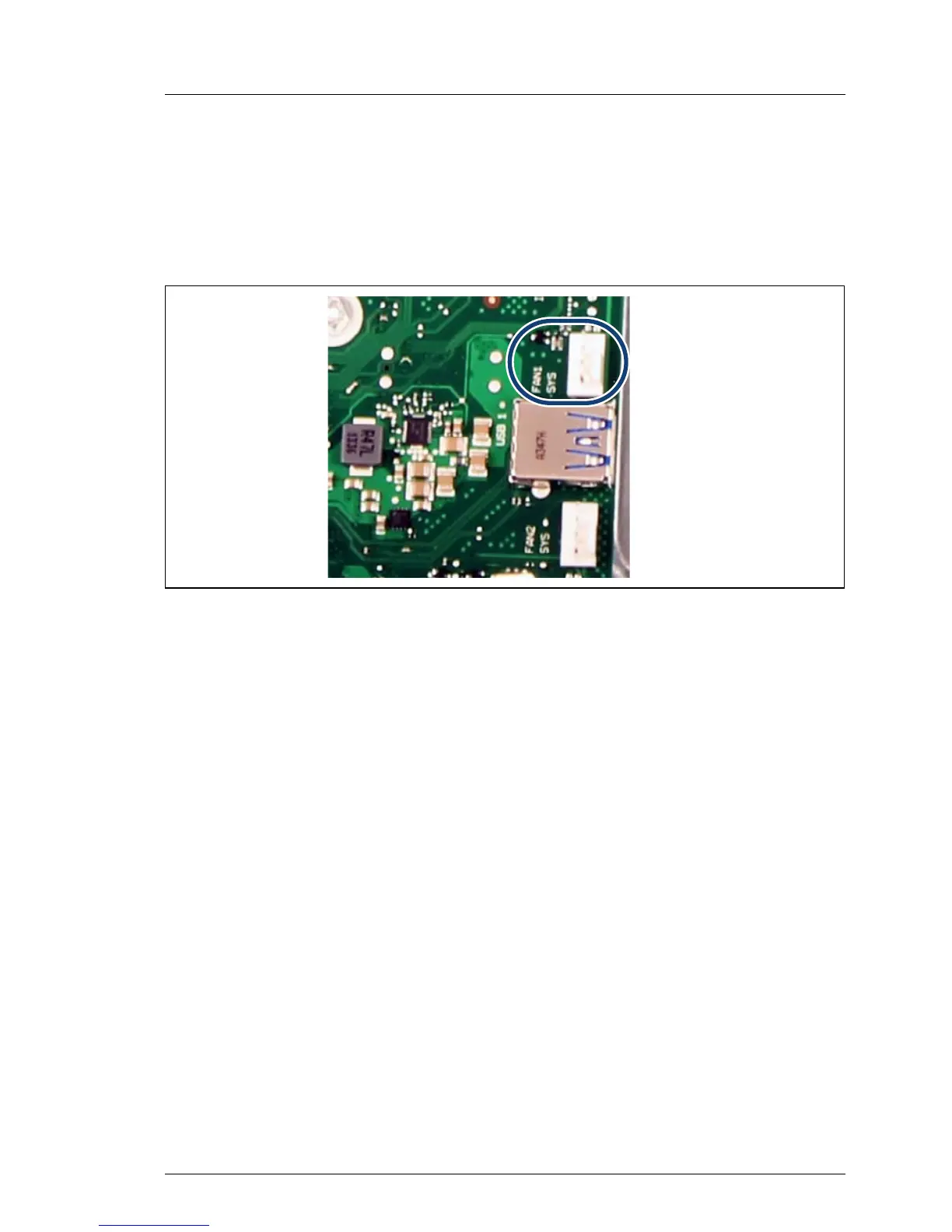

Figure 20: Connector for the fan 1 cable
Ê Connect the fan cable of system fan 1 to system board connector FAN1 SYS
(see circle).
