82 Upgrade and Maintenance Manual
TX1310 M1
Power supply
6.1.3 Installing the new power supply unit

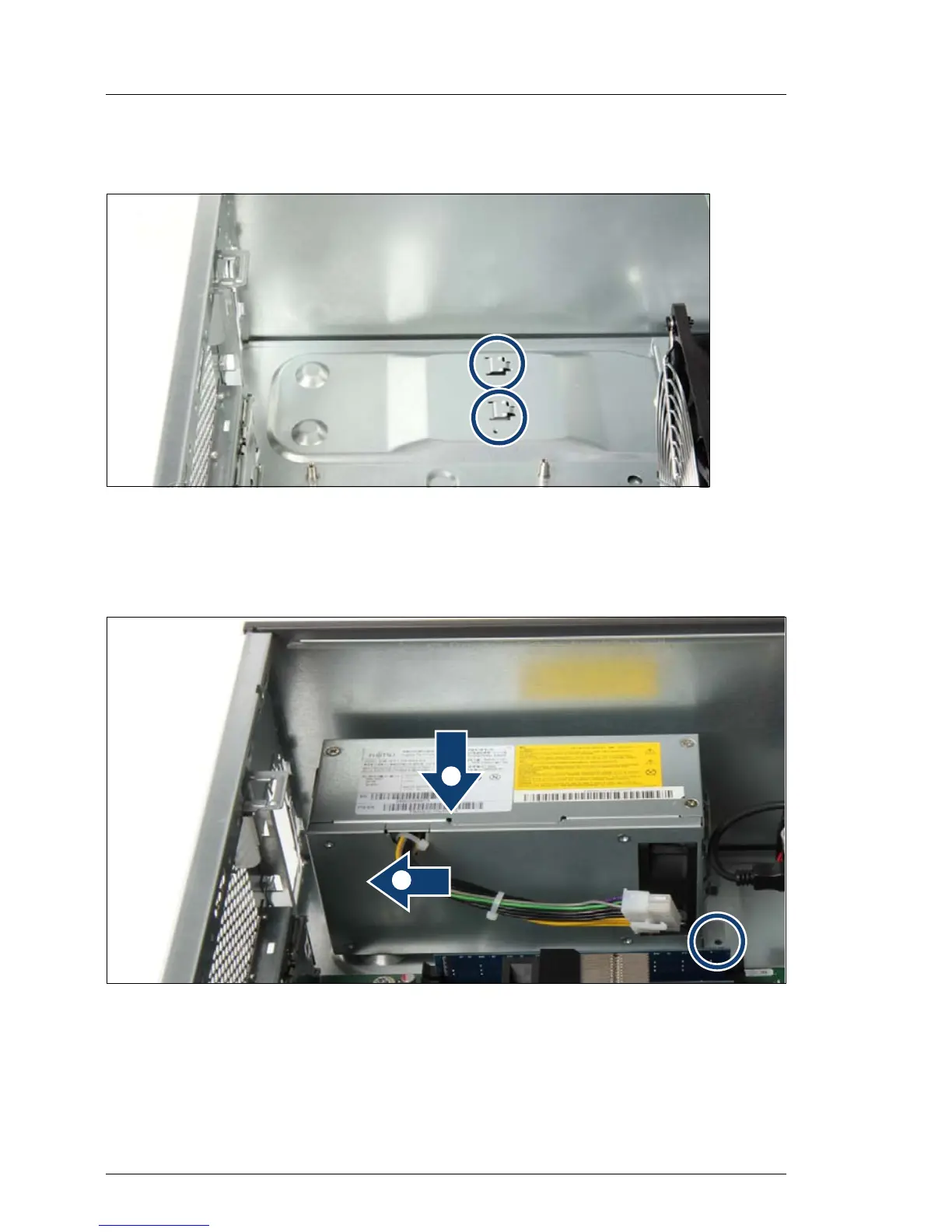

Figure 28: Hooks for fastening the PSU
I Take care, that the PSU is fastening into the hooks (see circles).
Figure 29: Installing the PSU
Ê Insert the new PSU into the chassis (1).
Ê Slide the new PSU towards the rear of the chassis (2).
Ê Secure the PSU to the chassis with the screw (see circle).
햲
햳
