Fujitsu PRIMERGY TX1310 M1

TX1310 M1 Upgrade and Maintenance Manual 83
Power supply

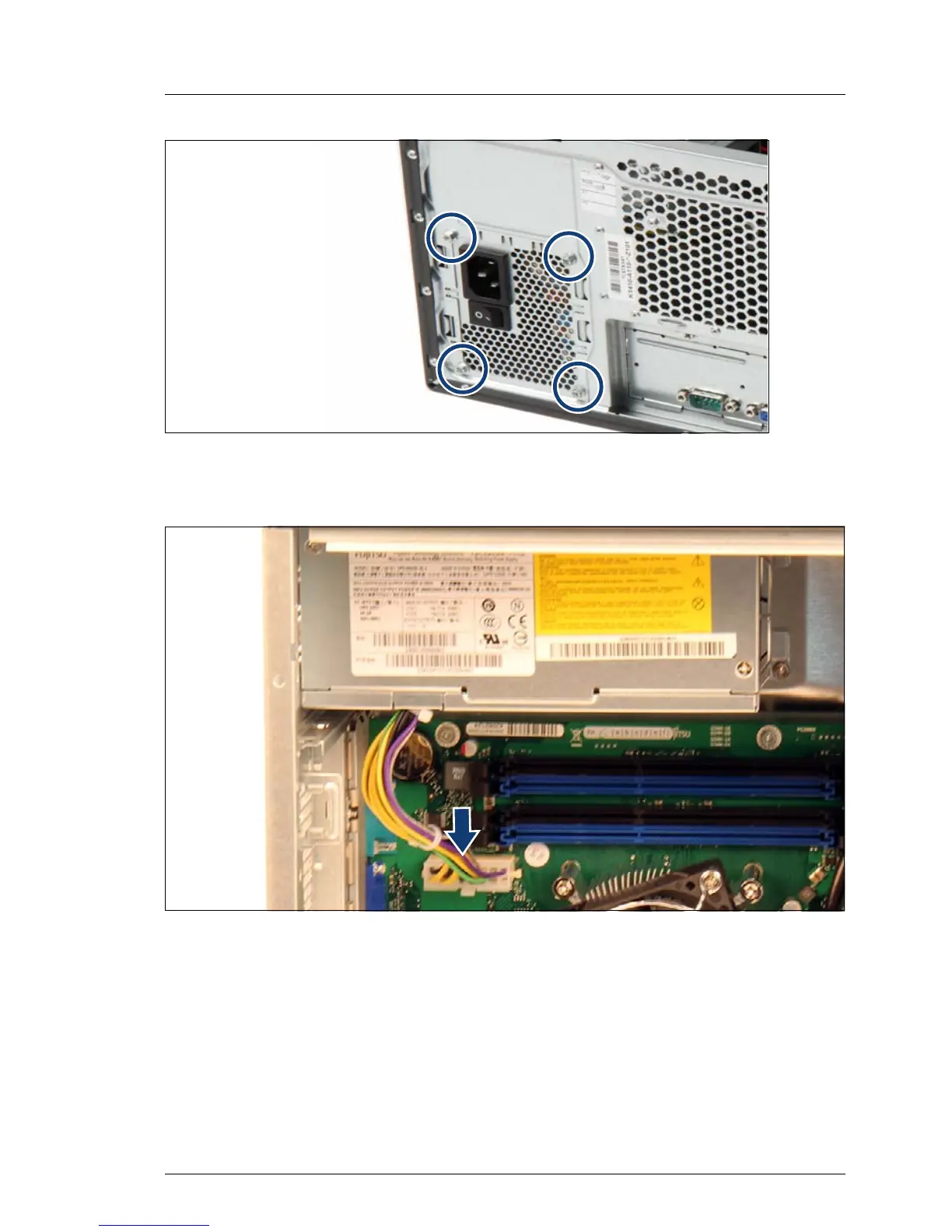

Figure 30: Securing the PSU
Ê Secure the PSU to the chassis with four screws (see circles).
Figure 31: Connecting power cable
Ê Connect the PSU ATX power connector to system board connector
"POWER".
