TX1310 M1
Upgrade and Maintenance Manual 51
Basic hardware procedures
4.5.2.2 Installing the backup drive

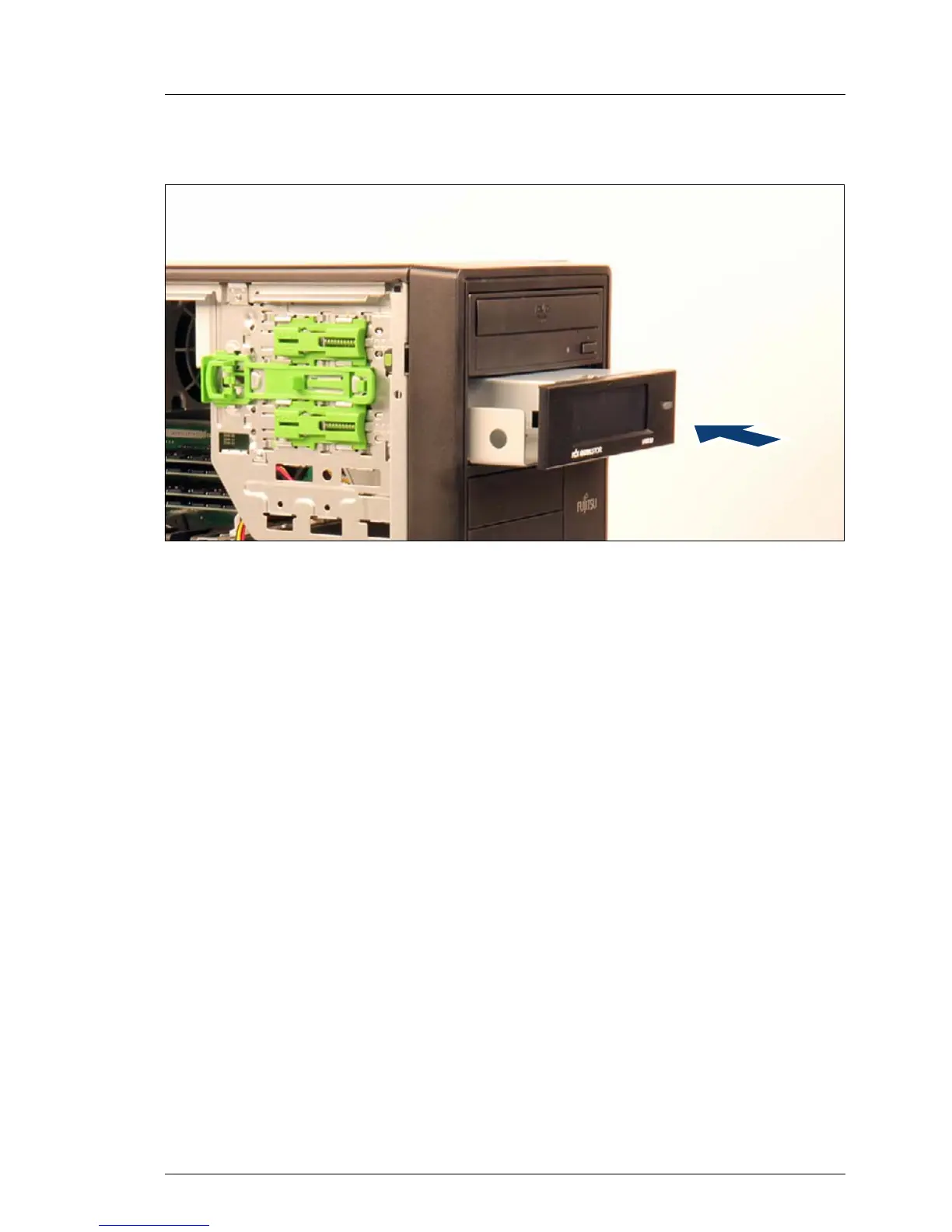

Figure 12: Installing the backup drive
Ê Insert the backup drive into its installation bay and carefully push in until it
locks in place.
I Make sure that the fixation plate is attached on the left side of the
accessible drive.
If there is a metal plate in the bay refer to chapter "Installing
accessible drives" on page 161 to remove it.
