228 Upgrade and Maintenance Manual
TX1310 M1
Appendix
16.2.1.3 I/O panel indicators

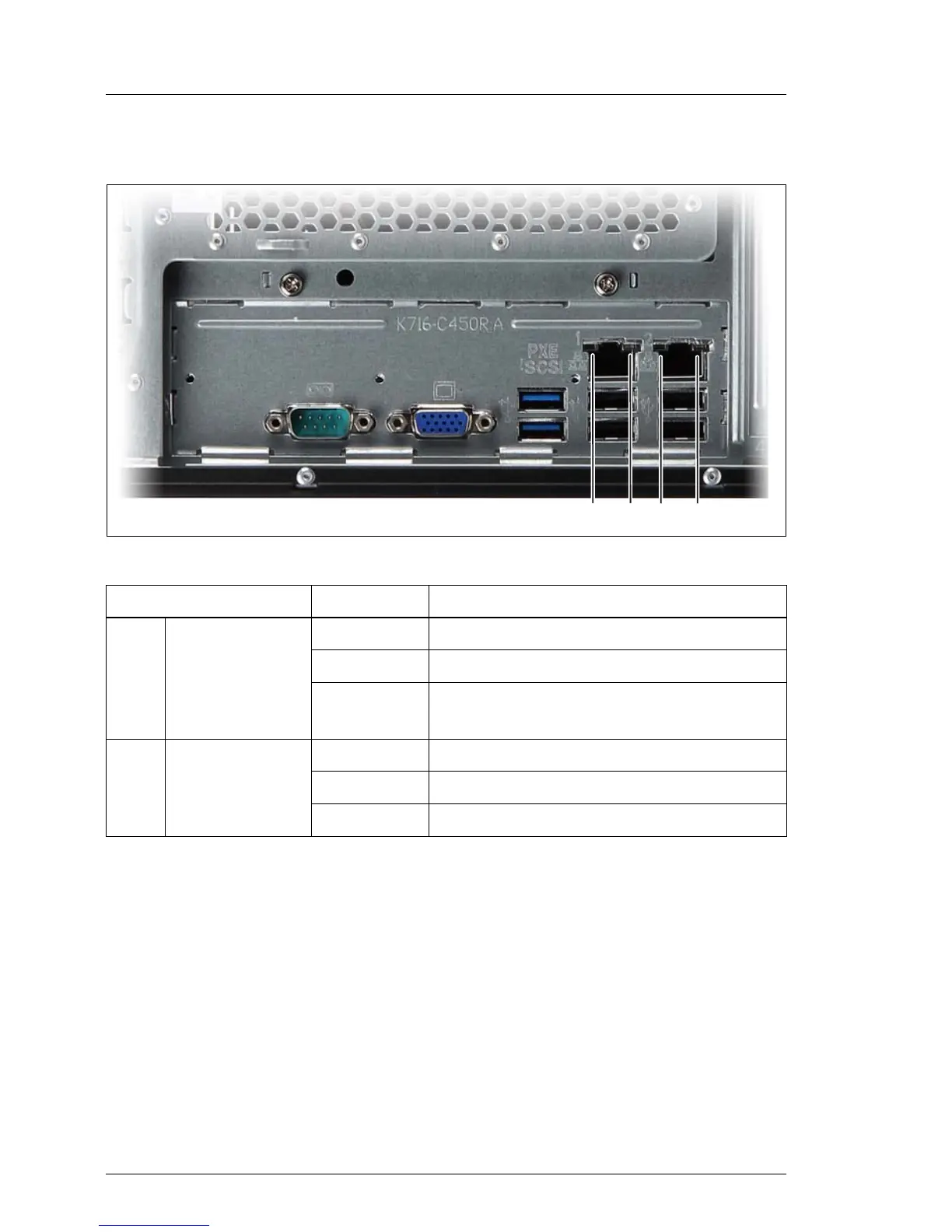

Figure 166: I/O panel indicators
I Note on the onboard LAN controller
The system board is equipped with Gigabit Ethernet Controllers of the
type Intel
®
82574L (LAN1) and 82579LM (LAN2). Both LAN controllers
support transmission rates of 10 Mbit/s, 100 Mbit/s and 1 Gbit/s.
The LAN controller (LAN1) supports WOL functionality by means of
MagicPacket™. The LAN1 controller also supports features like PXE and
iSCSI.
The LAN2 controller supports LAN access only.
Indicator Status Description
1
LAN
link/transfer
green on LAN connection established
off no LAN connection
green
flashing
data transfer in progress
2 LAN speed
yellow on transfer rate 1 Gbit/s
green on transfer rate 100 Mbit/s
off transfer rate 10 Mbit/s
햲 햳
햲 햳
