150 Upgrade and Maintenance Manual
TX1310 M1
Processor
11.2.5 Installing a processor
I This description applies to the following procedures:
– Transferring a processor after replacing the system board (see
section "Replacing the system board" on page 206)
11.2.5.1 Removing the protective cover

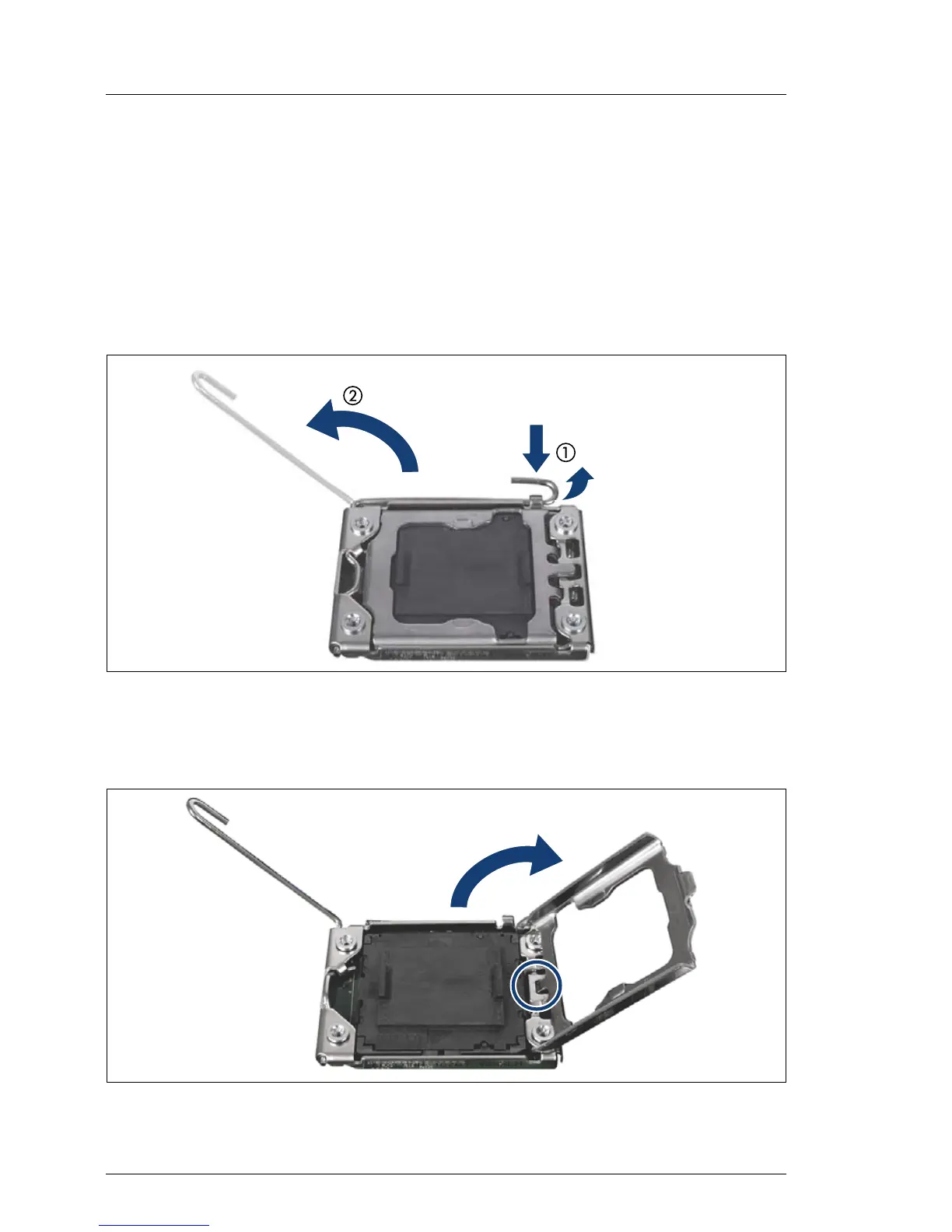

Figure 93: Opening socket release lever
Ê Unlatch the socket release lever by pushing it down and away from the
socket (1), and then swivel it up (2).
Figure 94: Opening the load plate
