Fujitsu PRIMERGY TX1310 M1 Upgrade And Maintenance Manual

TX1310 M1 Upgrade and Maintenance Manual 151
Processo
r
Ê Open the load plate of the processor socket.
V CAUTION!
Handle the locking frame carefully.
In a vertical position, the small clip (see circle) can scratch the system
board.

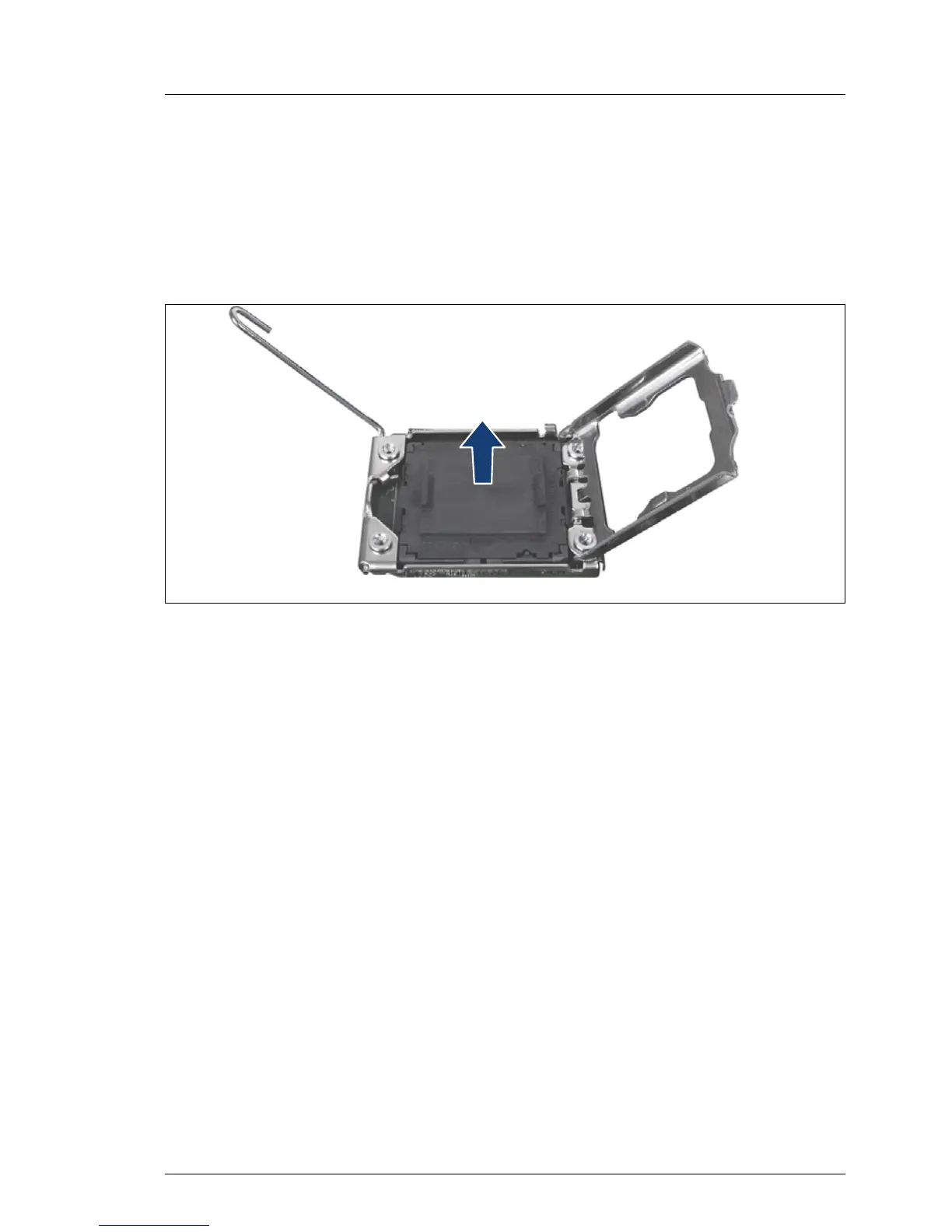

Figure 95: Removing the protective cover
Ê Remove the black protective cover from the processor socket.

Fujitsu PRIMERGY TX1310 M1 Specifications

General

Brand	Fujitsu
Model	PRIMERGY TX1310 M1
Category	Server
Language	English
