12.2.4 Installing a slimline optical disk drive (ODD)
12.2.4.1 Mounting the slimline drive in the slide-in unit

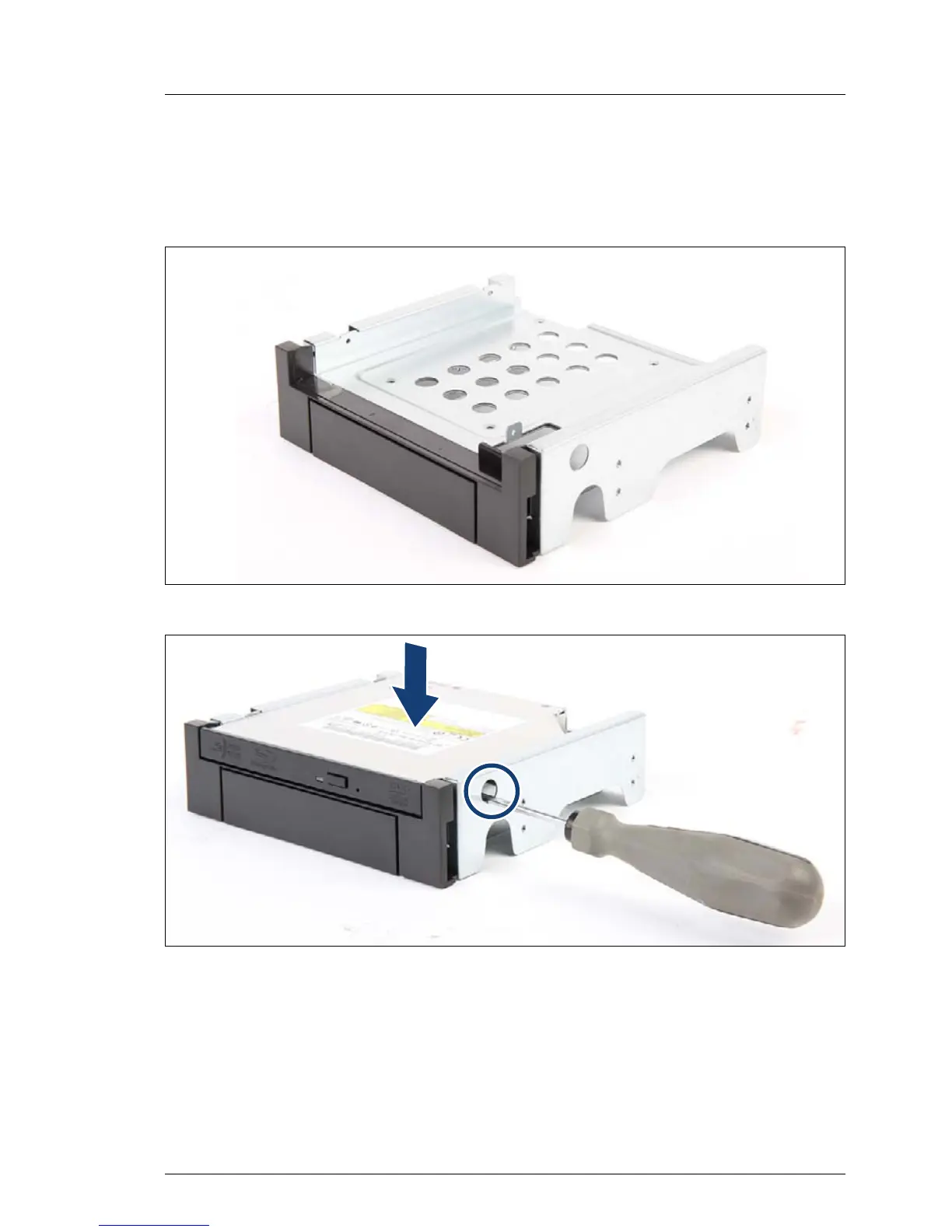

Figure 111: Slide-in unit for slimline ODD drive
Figure 112: Mounting the slimline ODD in the slide-in unit (A)
Ê Insert the slimline ODD on the top.
Ê Fasten it with one M2 x 2.5 mm screw to the slide-in unit on the right side.
