TX1310 M1
Upgrade and Maintenance Manual 87
Hard disk drives
7.2 Installing 3.5-inch HDDs
7.2.1 Preliminary steps
Ê "Shutting down the server" on page 40
Ê "Disconnecting the server from the mains" on page 41
Ê "Removing the side cover" on page 42
Ê Locate the correct installation bay as described in section "Basic
information" on page 86.
7.2.2 Removing the Easyclick rail out of the bay

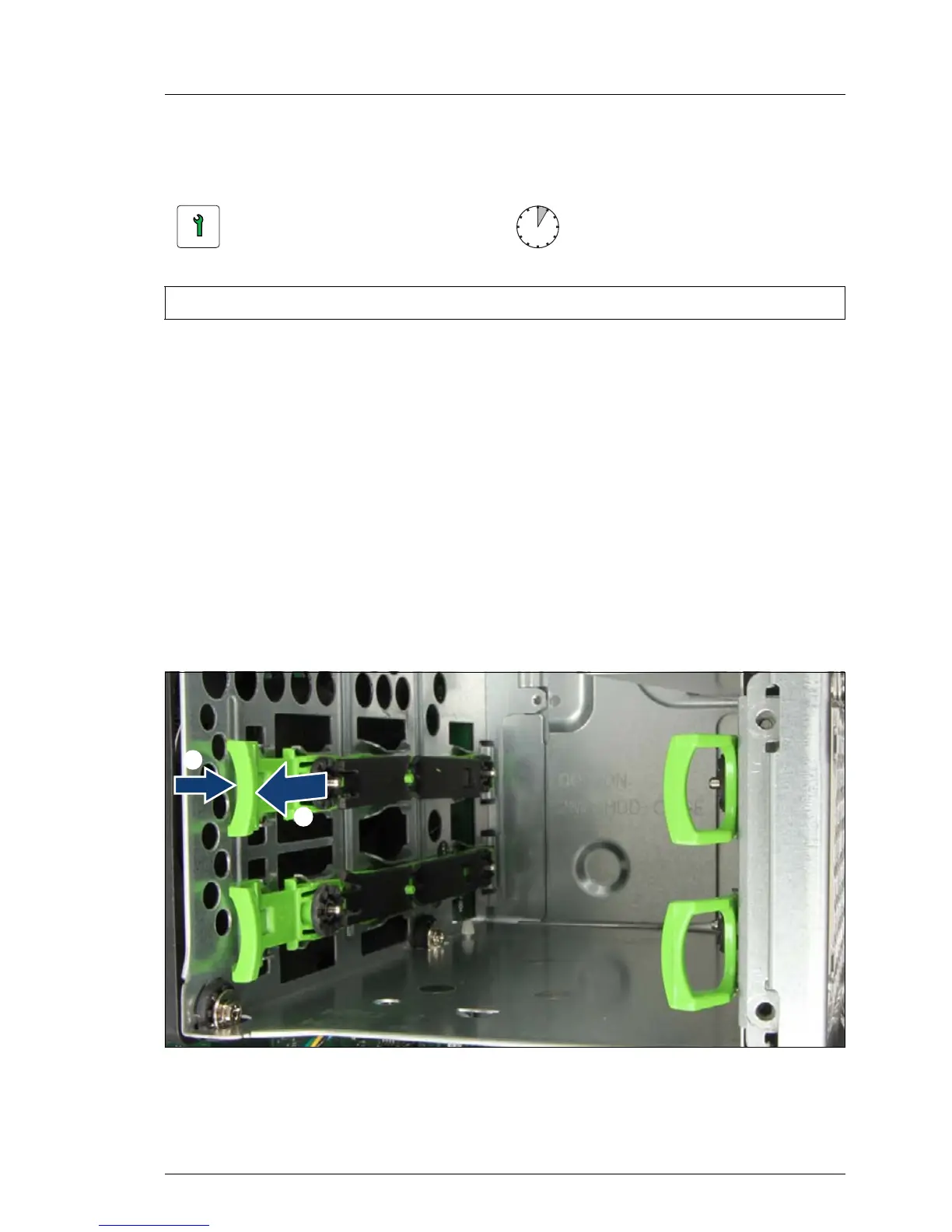

Figure 33: Removing the Easyclick rails out of the bay
Ê Press the green handle of the Easyclick rail a little inwards (1) and pull the
rail out of the desired 3.5-inch HDD installation bay (2).
Customer Replaceable Unit
(CRU)
Hardware: 5 minutes
Tools: tool-less
/
