184 Upgrade and Maintenance Manual
TX1310 M1
Front panel and front USB
13.1.2 Removing the On/Off button and the HDD activity
LED

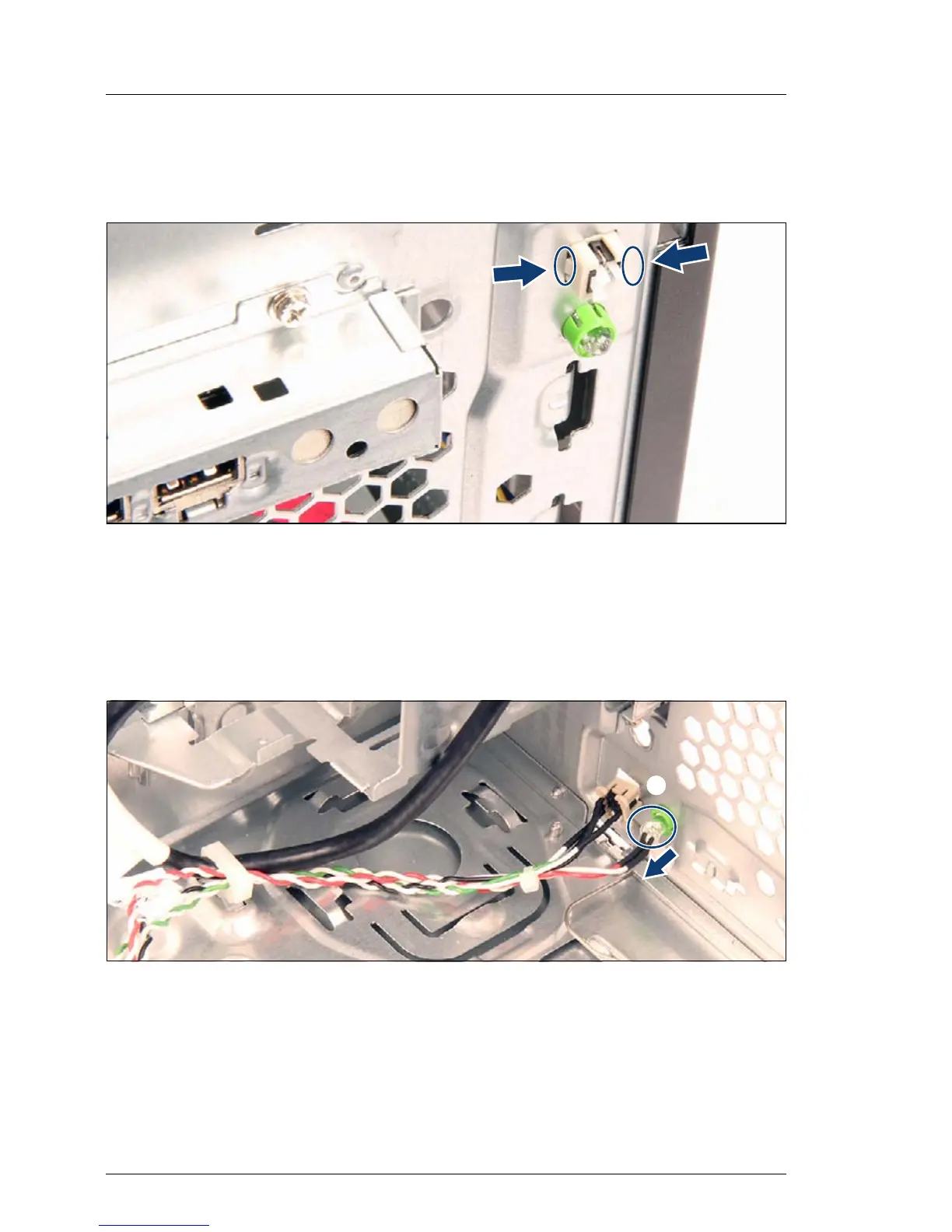

Figure 133: Removing the On/Off button
Ê Press the two retaining clips together and push the On/Off button backwards
in the chassis.
I Note the orientation of the On/Off button. If it is installed in the other
direction, it does not work properly.
Figure 134: Removing the HDD activity LED
Ê Pull the LED inwards the chassis (1).
햲
