Fujitsu PRIMERGY TX1310 M1

TX1310 M1 Upgrade and Maintenance Manual 189
Front panel and front USB

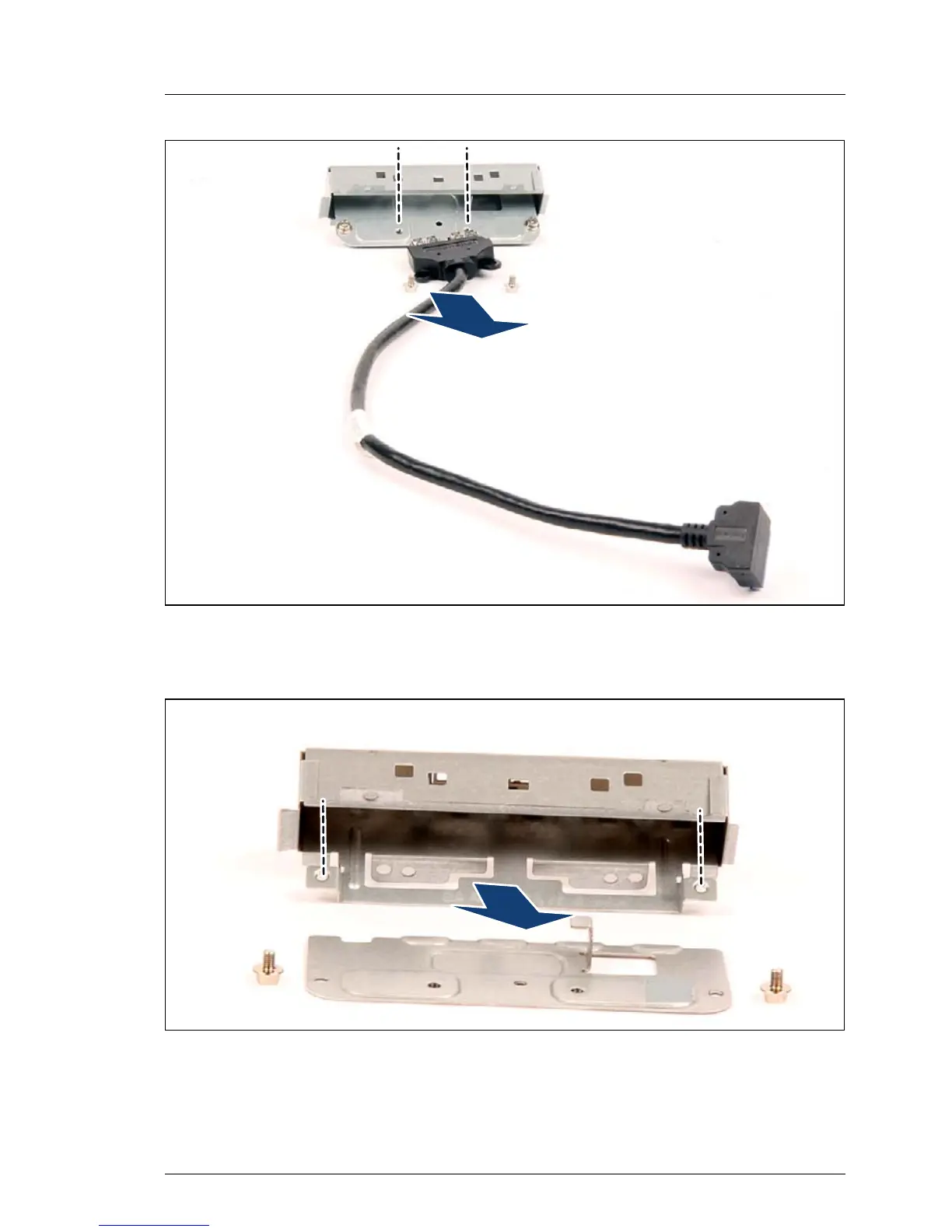

Figure 139: Removing the front USB cable from the carrier (A)
Ê Remove the two screws of the USB cable from the carrier.
Figure 140: Removing the plate from the carrier (B)
Ê Remove the two screws and pull the plate out of the carrier.
