TX1310 M1
Upgrade and Maintenance Manual 111
System fans

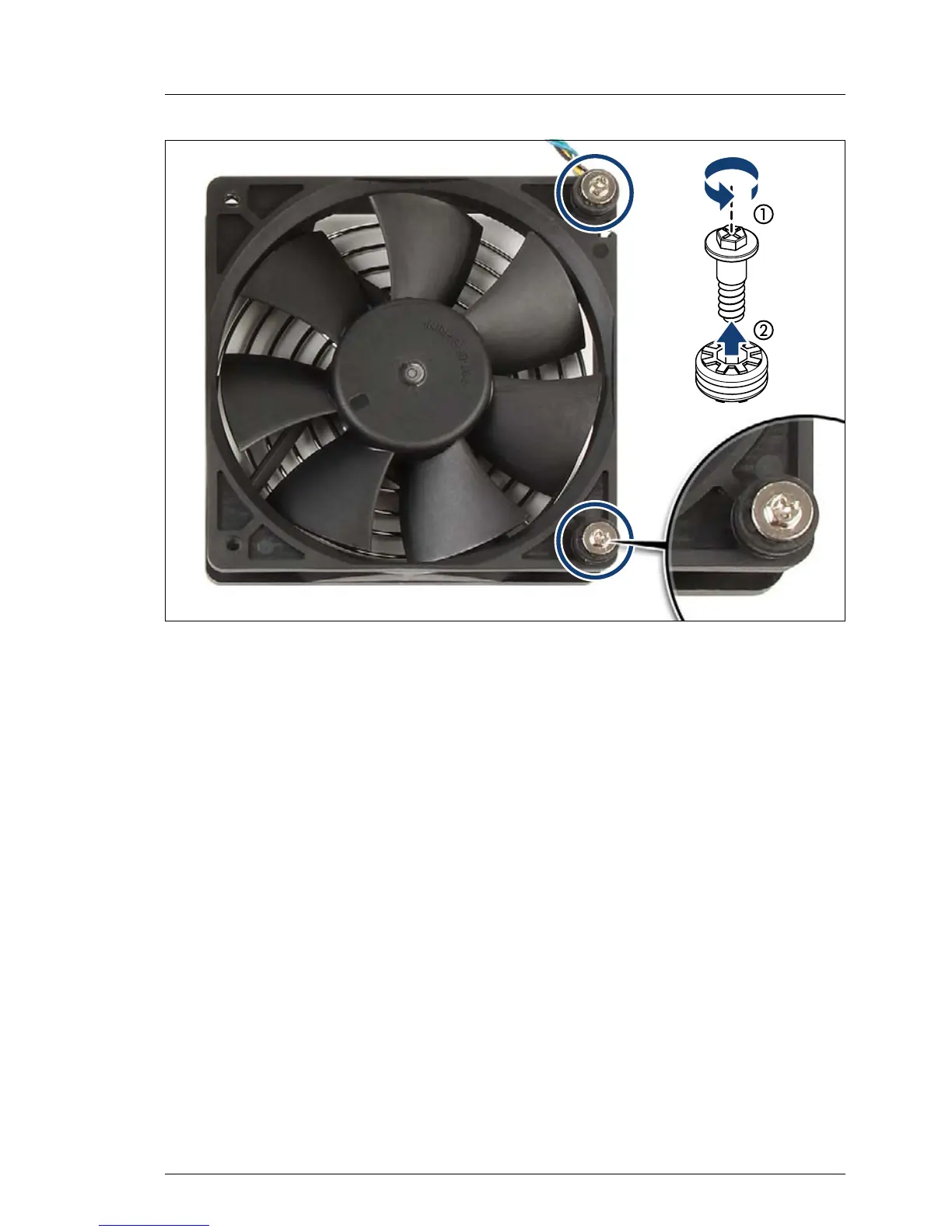

Figure 59: Removing the bushings
Ê Remove the two screws from the fan (1, see circles).
Ê Remove the two bushings from the fan (2).
I Keep the screws and bushings for further use. You will need both to
prepare the replacement of the fan.
