Fujitsu PRIMERGY TX1310 M1

TX1310 M1 Upgrade and Maintenance Manual 153
Processo
r

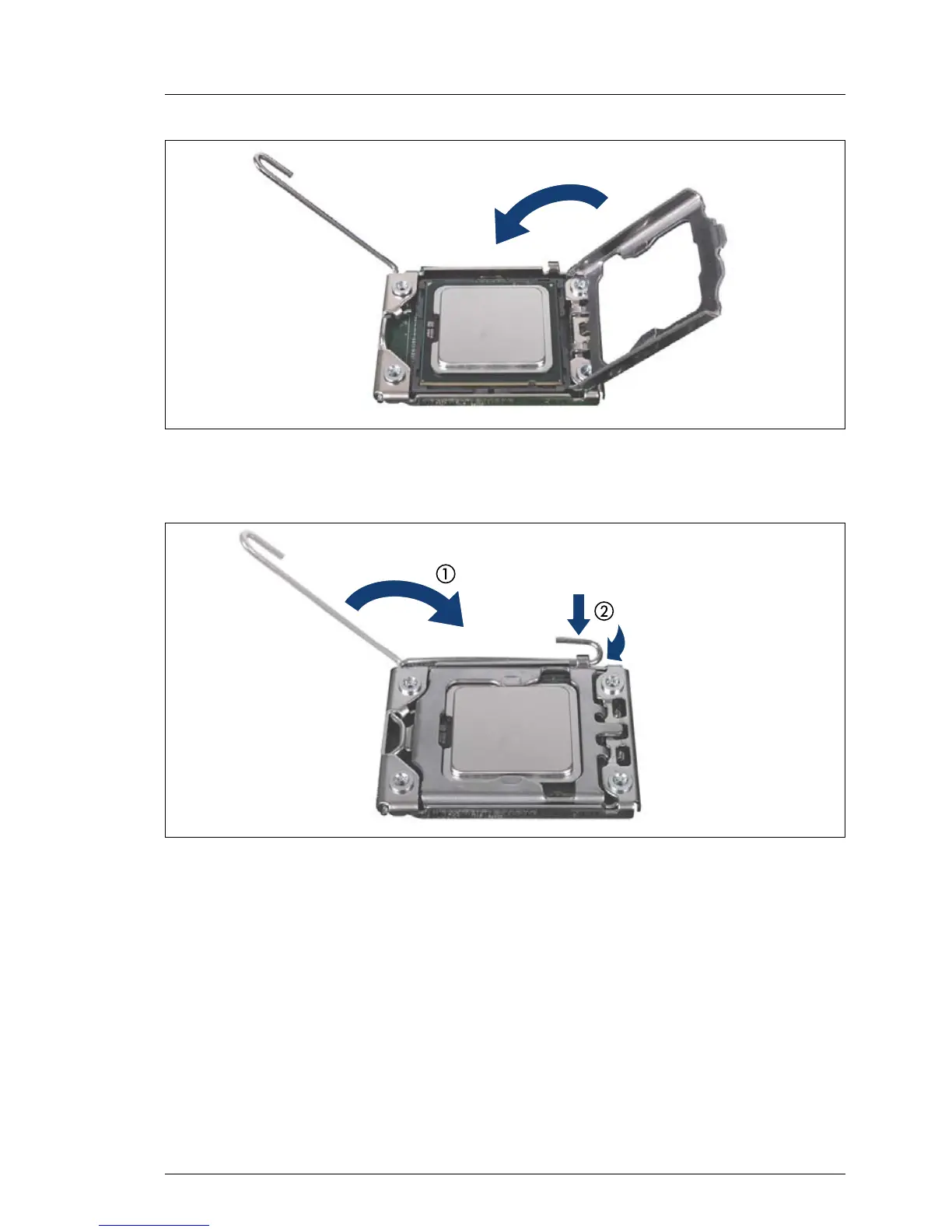

Figure 97: Closing the load plate
Ê Close the load plate of the processor.
Figure 98: Closing the socket release lever
Ê Close the socket release lever (1) and latch it under the load plate retention
tab (2) to lock down the load plate.
