Fujitsu PRIMERGY TX1310 M1

180 Upgrade and Maintenance Manual TX1310 M1
Accessible drives

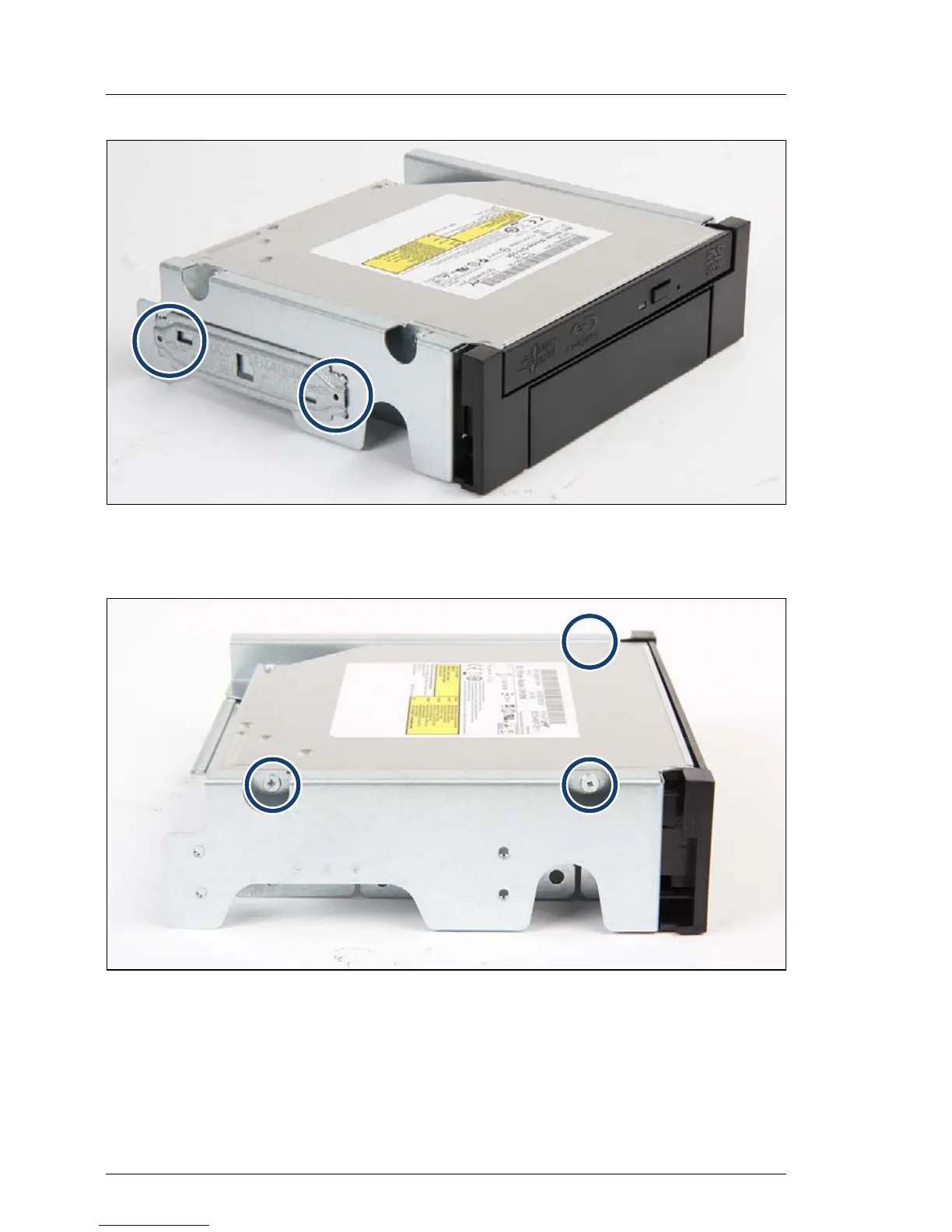

Figure 128: Removing the fixation plate from the slide-in unit
Ê Remove the fixation plate from the left side of the slide-in unit.
Figure 129: Removing the slimline ODD from the slide-in unit (A)
Ê Remove the three M2 x 2.5 mm screws from the left side of the slide-in unit.
