146 Upgrade and Maintenance Manual
TX1310 M1
Processor

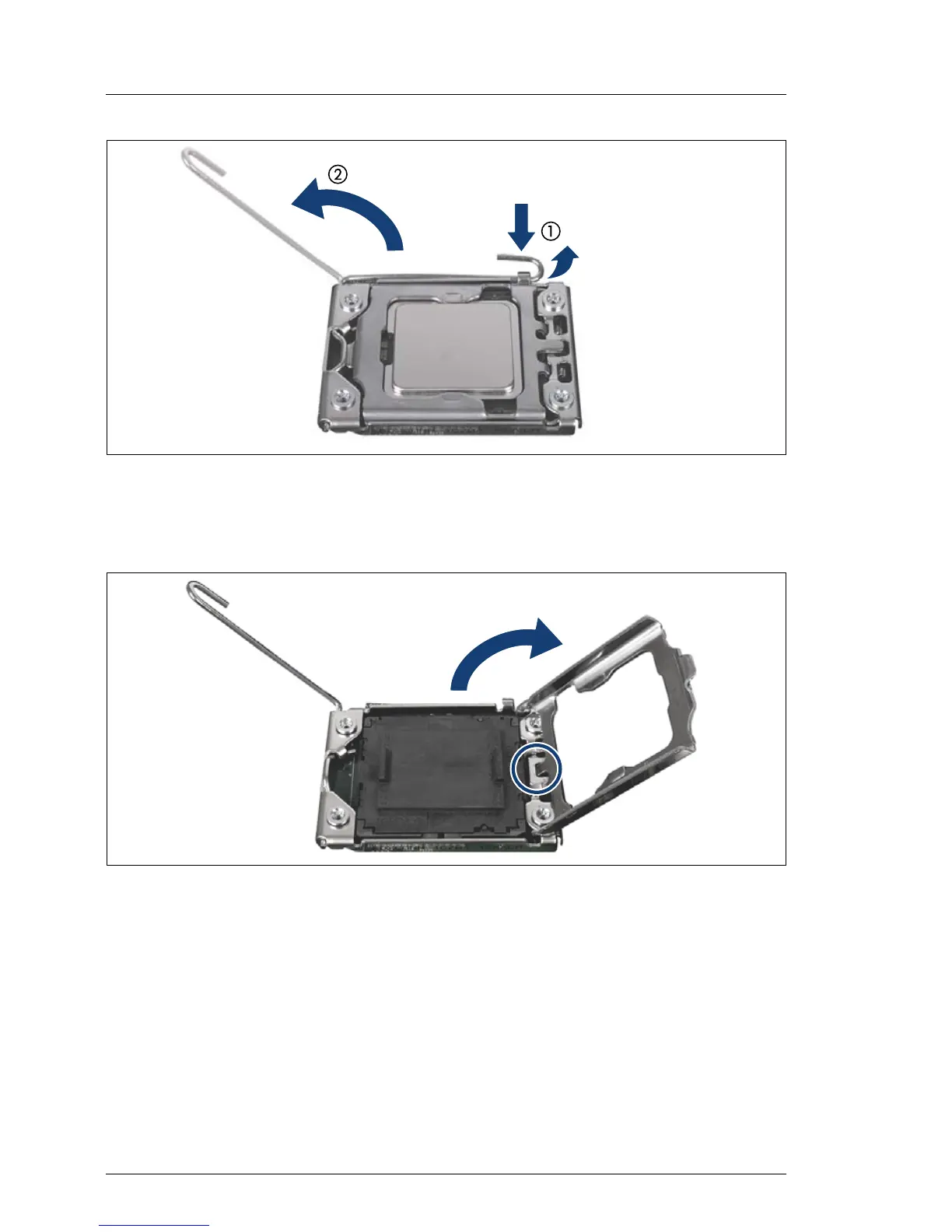

Figure 87: Opening socket release lever
Ê Unlatch the socket release lever by pushing it down and away from the
socket (1), and then swivel it up (2).
Figure 88: Opening the load plate
Ê Open the load plate of the processor socket.
V CAUTION!
Handle the locking frame carefully.
In a vertical position, the small clip (see circle) can scratch the system
board.
