Accessible drives

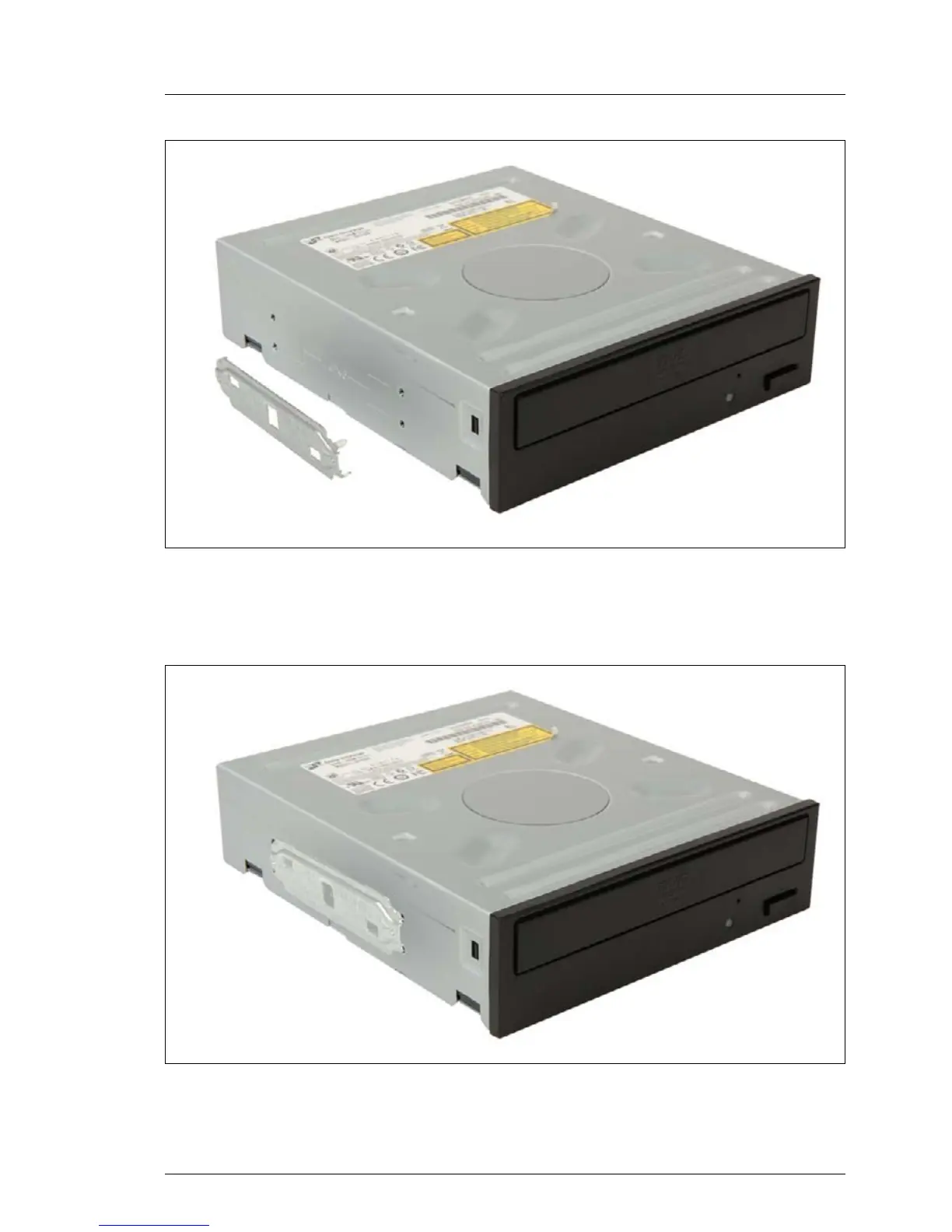

Figure 108: Attaching the fixation plate to the optical disk drive (A)
Ê Align the four pins of the fixation plate with the screw holes on the optical
disk drive.
Figure 109: Attaching the fixation plate to the optical disk drive (B)
Ê Attach the fixation plate on the left side of the optical disk drive.
