198 Upgrade and Maintenance Manual
TX1310 M1
System board and components

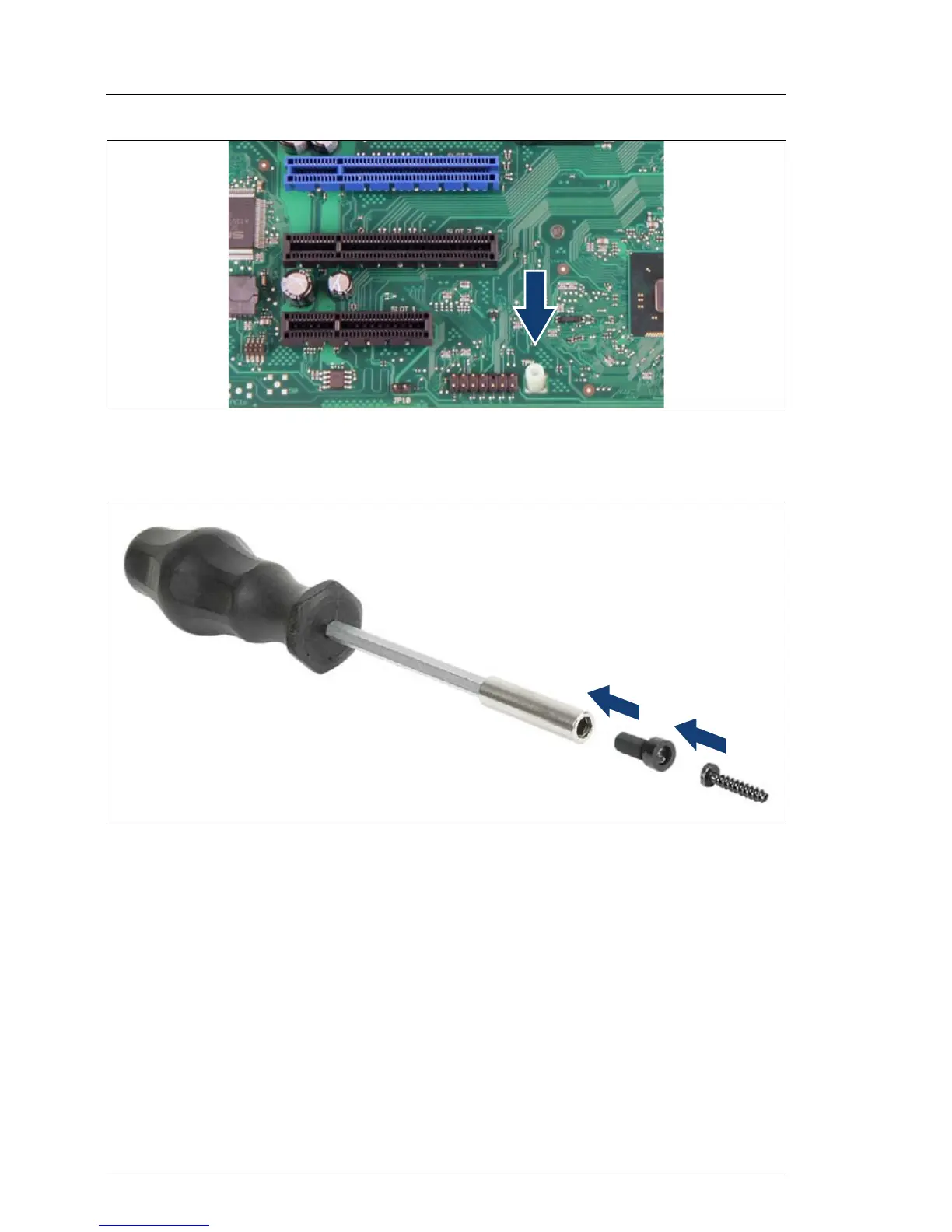

Figure 148: Installing the TPM spacer
Ê Snap the TPM spacer into the cut-out in the system board.
Figure 149: TPM bit insert
Ê Attach the TPM bit insert or TPM module fixing tool (Japanese market) to a
bit screw driver.
